Shop LEVITON

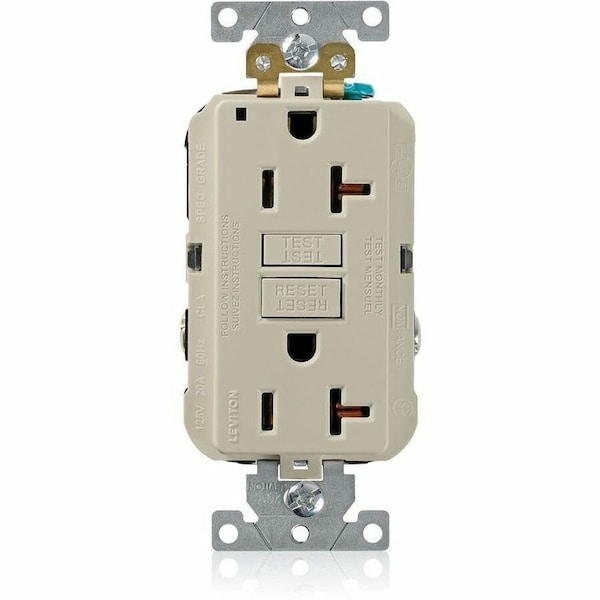

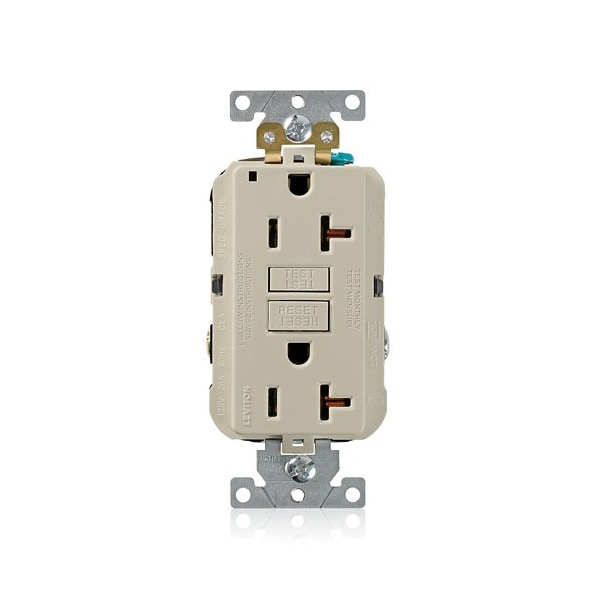

Plugs&Rcptcls, 20A, 125VAC, Ivory, Polycarb

  • Mfr # G5362-I

  • Zoro # G222586853

product price:
$
43.59
/ea

Key Features

Face Plate Height
2.8 in
Self Testing
Yes
Face Plate Width
1.7 in
AFCI
No
Housing Color
Ivory
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362-I
Zoro #
G222586853
UPC #
78477906101
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in

Details

Self Testing
Yes
AFCI
No
Housing Color
Ivory
Current Rating
20 A
Voltage Rating
125V AC
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
66 Degrees C
Grade
General Use
Phase
Single
Maximum Surge Current
10 kA
Mount Type
Flush
Receptacle Type
Duplex
Item
Plugs and Receptacles
Horsepower Rating
1 hp
Polarized
Yes
Shrouded
No
Features
20 a Feed-Through Terminals, Power Indication LED
Flange Type
Non-Flanged
Surge Protection
No
Housing Material
Polycarbonate
Number of Wall Plates Included
0
GFCI
Yes
Number of Outlets
2
Grounding
Grounded
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
Minimum Operating Temperature
-35 Degrees C
Contact Material
Brass
IP Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Gangs
1
Wiring Method
Back/Side
Standards
CSA, FULS Marking, UL
Market
Industrial
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
