Shop LEVITON

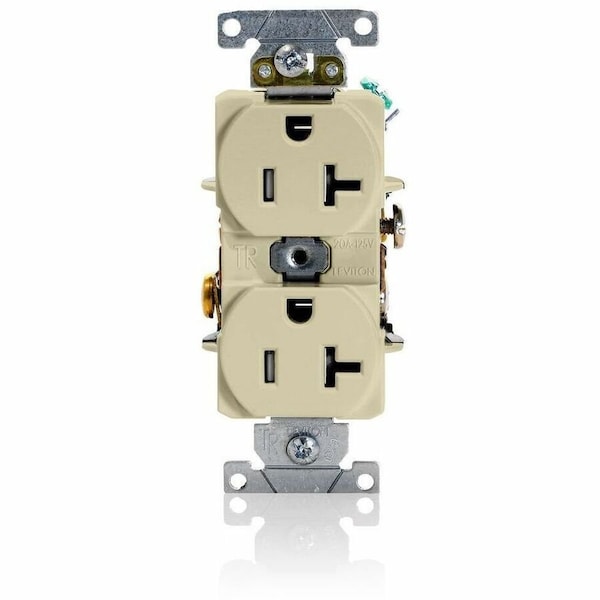

Plugs&Rcptcls, 20A, 125VAC, Ivry, PBT, PK1

  • Mfr # T5362-I

  • Zoro # G722587114

product price:
$
282.99
/pk of 10, $28.30/ea
Free Shipping & Returns

Key Features

Phase
Single
Standards
CSA, FULS Marking, UL
Number of Wires
3
Cover Type
No Cover
Grade
General Use
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5362-I
Zoro #
G722587114
UPC #
78477895061
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG

Details

Phase
Single
Standards
CSA, FULS Marking, UL
Number of Wires
3
Cover Type
No Cover
Grade
General Use
Number of Poles
2
Market
Industrial
Mount Type
Flush
Number of Wall Plates Included
0
Voltage Rating
125V AC
Connection Orientation
Straight
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
1 hp
GFCI
No
Minimum Operating Temperature
-40 Degrees C
Current Rating
20 A
Housing Color
Ivory
Shrouded
No
AFCI
No
IP Rating
Not Rated
Flange Type
Non-Flanged
Grounding
Grounded
Wiring Method
Back/Side
Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Number of Gangs
1
Receptacle Type
Duplex
NEMA Enclosure Rating
Not Rated
Polarized
Yes
NEMA Receptacle Configuration
5-20R
Number of Outlets
2
Contact Material
Phosphor Bronze
Item
Plugs and Receptacles
Resistance Properties
Tamper Resistant
Housing Material
PBT Polyester
Features
Smooth Face
Surge Protection
No
UL 94 Flammability Rating
V-0

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
