Shop LEVITON

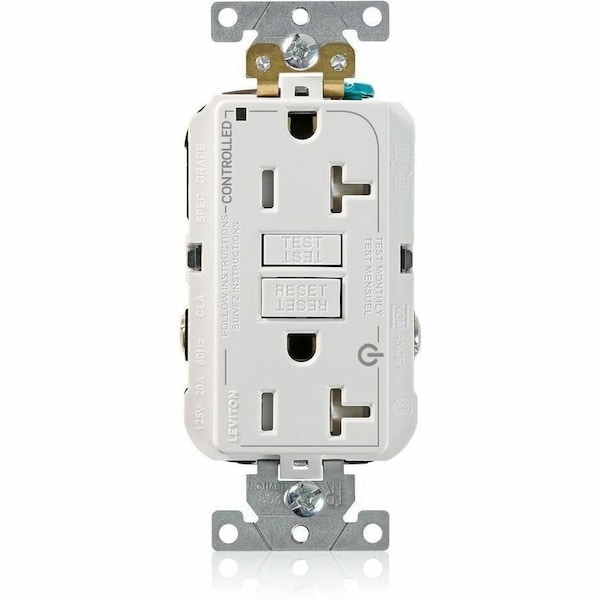

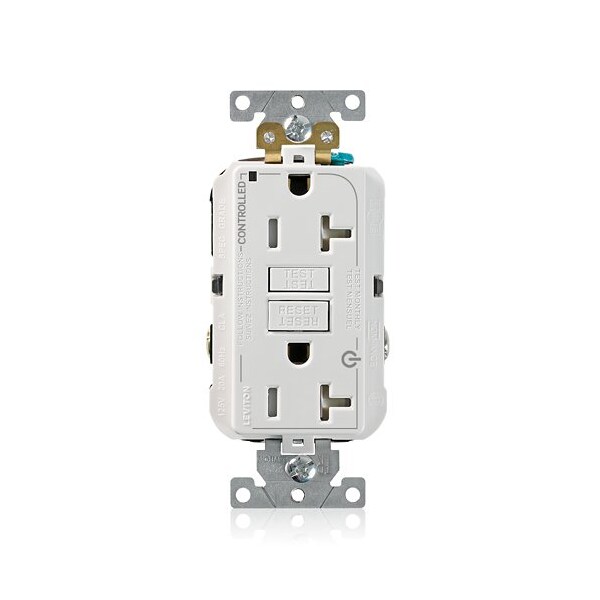

Plugs&Rcptcls, 20A, 125VAC, Wht, Polycarb

  • Mfr # G5362-2TW

  • Zoro # G522587680

product price:
$
57.79
/ea

Key Features

Number of Poles
2
NEMA Enclosure Rating
Not Rated
Mount Type
Flush
Face Plate Width
1.7 in
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
G5362-2TW
Zoro #
G522587680
UPC #
78477433645
Country of Origin
China
Number of Poles
2
NEMA Enclosure Rating
Not Rated
Mount Type
Flush
Phase
Single
IP Rating
Not Rated
Maximum Operating Temperature
66 Degrees C
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding
Grounded
Item
Plugs and Receptacles
AFCI
No
Receptacle Type
Duplex
Voltage Rating
125V AC
Grade
General Use
Flange Type
Non-Flanged
Shrouded
No
Maximum Surge Current
10 kA
Cover Type
No Cover
NEMA Receptacle Configuration
5-20R
Minimum Operating Temperature
-35 Degrees C
Market
Industrial
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Self Testing
Yes
Housing Color
White
Number of Wires
3
Contact Material
Brass
Number of Gangs
1
Number of Wall Plates Included
0
Current Rating
20 A
Wiring Method
Back/Side
Surge Protection
No
For Environment
Food and Beverage, Oily/Greasy
Number of Outlets
2
GFCI
Yes
Polarized
Yes
Standards
CSA, FULS Marking, UL
Features
Power Indication
Housing Material
Polycarbonate

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
