Shop LEVITON

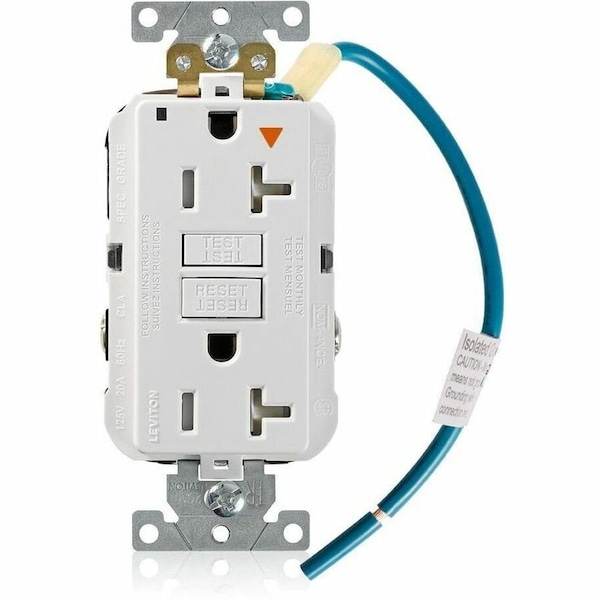

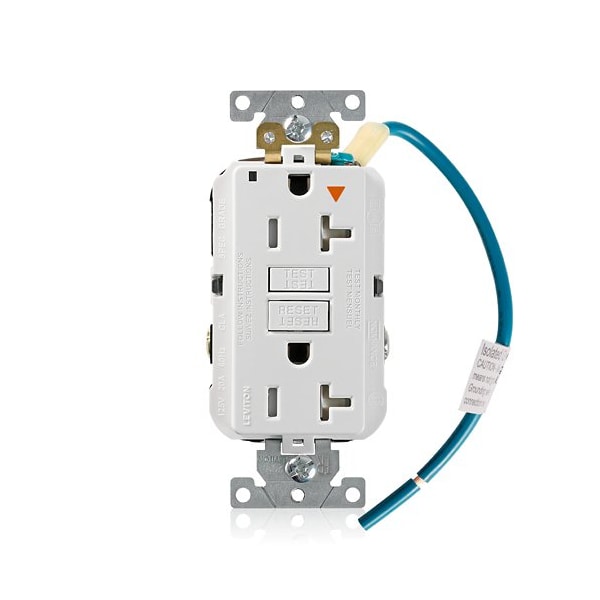

Plugs&Rcptcls, 20A, 125VAC, Wht, Polycarb

  • Mfr # GFTR2-IGW

  • Zoro # G122586915

product price:
$
48.59
/ea

Key Features

Voltage Rating
125V AC
Maximum Surge Current
10 kA
Polarized
Yes
NEMA Receptacle Configuration
5-20R
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GFTR2-IGW
Zoro #
G122586915
UPC #
78477724156
Country of Origin
China
Voltage Rating
125V AC
Maximum Surge Current
10 kA
Polarized
Yes
NEMA Receptacle Configuration
5-20R
IP Rating
Not Rated
Housing Material
Polycarbonate
Number of Gangs
1
Current Rating
20 A
Surge Protection
No
Minimum Operating Temperature
-35 Degrees C
Item
Plugs and Receptacles
Phase
Single
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Screw Terminals
Flange Type
Non-Flanged
Wiring Method
Back/Side
Maximum Operating Temperature
66 Degrees C
Grade
General Use
Horsepower Rating
1 hp
Number of Poles
2
GFCI
Yes
Number of Wires
3
Resistance Properties
Tamper Resistant
Cover Type
No Cover
Contact Material
Brass
Receptacle Type
Duplex
Market
Industrial
NEMA Enclosure Rating
Not Rated
Grounding
Isolated Ground
Self Testing
Yes
Housing Color
White
Shrouded
No
Features
Power Indication
Standards
CSA, FULS Marking, UL
Number of Outlets
2
Number of Wall Plates Included
0
AFCI
No
Connection Orientation
Straight
Mount Type
Flush

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
