Shop LEVITON

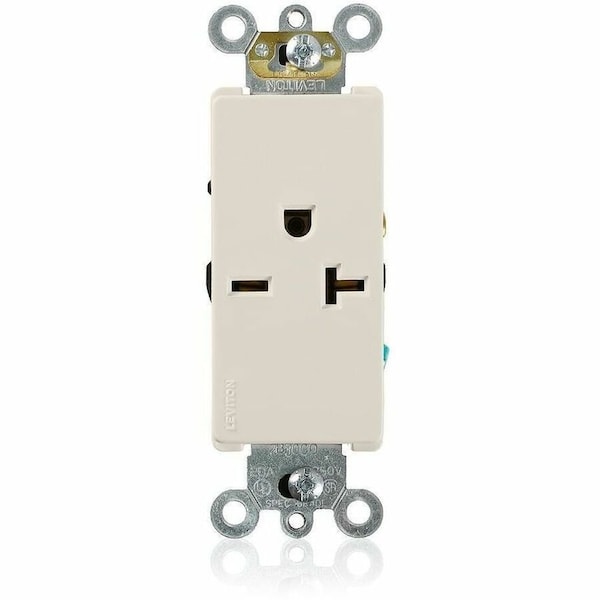

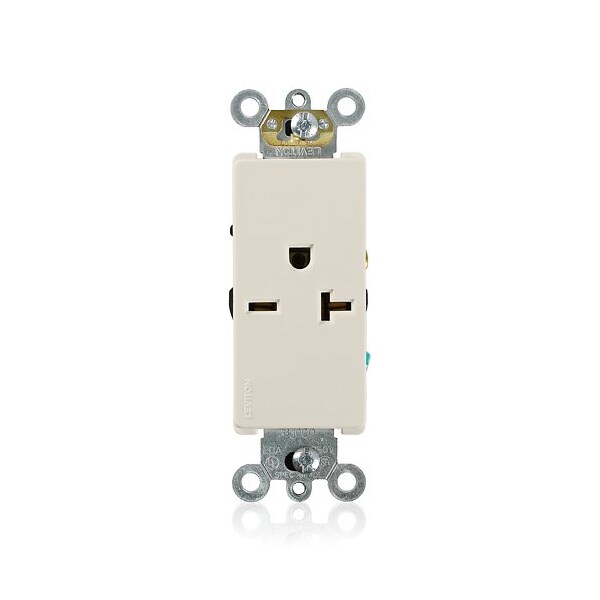

Plugs&Rcptcls, 20A, 250VAC, Almnd, Nylon

  • Mfr # 16441-T

  • Zoro # G922586689

product price:
$
6.49
/ea

Key Features

Contact Material
Brass
Mount Type
Flush
NEMA Receptacle Configuration
6-20R
Face Plate Width
1.3 in
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16441-T
Zoro #
G922586689
UPC #
78477272992
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.6 in
Minimum Wire Size
14 AWG

Details

Contact Material
Brass
Mount Type
Flush
NEMA Receptacle Configuration
6-20R
NEMA Enclosure Rating
Not Rated
Resistance Properties
Tamper Resistant
Grounding
Grounded
Market
Commercial
Maximum Operating Temperature
60 Degrees C
Number of Gangs
1
Number of Wall Plates Included
0
Polarized
Yes
Housing Color
Light Almond
UL 94 Flammability Rating
V-2
GFCI
No
Horsepower Rating
2 hp
Flange Type
Non-Flanged
Item
Plugs and Receptacles
AFCI
No
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Number of Poles
2
Voltage Rating
250V AC
Number of Outlets
1
Shrouded
No
Grade
General Use
Housing Material
Nylon
IP Rating
Not Rated
Features
Smooth Face
Phase
Single
Surge Protection
No
Current Rating
20 A
Connection Orientation
Straight
Number of Wires
3
Cover Type
No Cover
Wiring Method
Side
For Environment
Food and Beverage, Oily/Greasy
Receptacle Type
Single
Standards
CSA, FULS Marking, UL

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
