  11. Recept, Blk, 15 A, GFCI, 2P3W, Back; Side, 1PK

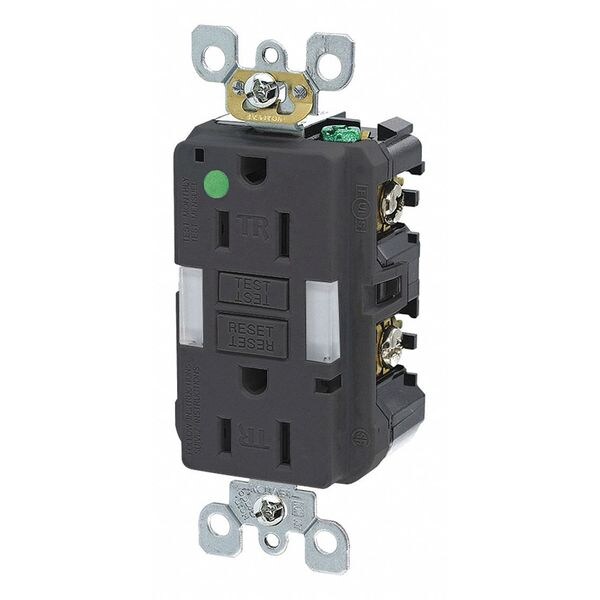

Leviton Recept, Blk, 15 A, GFCI, 2P3W, Back; Side, 1PK GFNL1-HGE - main

Recept, Blk, 15 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFNL1-HGE

  • Zoro # G104392886

product price: $43.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-HGE
Zoro #
G104392886
UPC #
07847772355
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Face Plate Height
2.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Application Environment
Hospital Grade
Tamper Resistant
Yes
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Color - Plugs and Receptacles
Black
Amps - Plugs and Receptacles
15 A
HP
1 hp
Voltage - Plugs and Receptacles
125V
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
Wiring Method
Back, Side
Self-Testing
Yes
Outlet Type - Plugs and Receptacles
Duplex
Surge Suppression
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-15
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mount Type
Flush
Hub Type
Feed Through
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Contact Material
Brass
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-31 Degrees F
Additional Electrical Protections
GFCI & Surge Protection
UL 94 Flammability Rating
V-0
Resistance Properties
Tamper Resistant
Key Resistance Properties
Tamper Resistant
Wire Connection Types
Screw Terminals
Horsepower Rating
1 hp
Includes
Strap Material
Surge Protection
Yes
Self Testing
Yes
Visual Indicator Lights
Power Connected
Additional Electrical Protection
GFCI, Surge Protection
Number of Poles & Wires
2 Pole / 3 Wire
Grade
Hospital Grade Fed. Spec.

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
