  11. Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

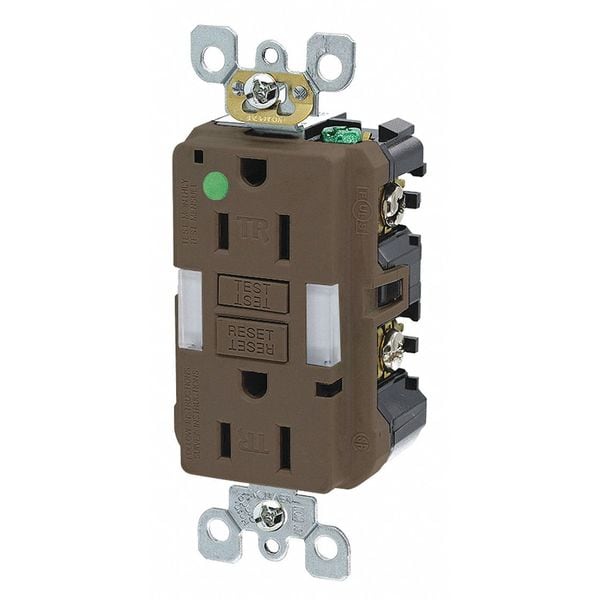

Leviton Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFNL1-HG - main

Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNL1-HG

  • Zoro # G804392964

product price: $42.79
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-HG
Zoro #
G804392964
UPC #
07847772368
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Face Plate Height
2.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Tamper Resistant
Yes
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Surge Suppression
Yes
Wiring Method
Back, Side
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V
Color
Brown
Item - Plugs and Receptacles
GFCI Receptacle
NEMA Configuration
5-15
Color - Plugs and Receptacles
Brown
Wiring Method - Plugs and Receptacles
Back and Side
Amps - Plugs and Receptacles
15 A
Voltage
125 VAC
Power Indicator
Yes
Application Environment
Hospital Grade
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
Additional Electrical Protections
GFCI & Surge Protection
Wire Connection Type
Screw Terminals
Wire Connection Types
Screw Terminals
Additional Electrical Protection
GFCI, Surge Protection
Includes Mounting Hardware
Yes
Resistance Properties
Tamper Resistant
Number of Poles & Wires
2 Pole / 3 Wire
Self Testing
Yes
Surge Protection
Yes
Grade
Hospital Grade Fed. Spec.
Key Resistance Properties
Tamper Resistant
Mount Type
Flush
Includes
Strap Material
Contact Material
Brass
Voltage Rating
125V AC
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Face Material
PBT
Short Circuit Current Rating
10kA
Function
GFCI
NEMA
WD-1 & WD-6
Amperage
15 A & 20 A Feed-Through
Operating Temperature
-35C to +66C
Shutter Mechanism
Delrin® Acetal
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Galvanized Steel
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Plated Steel
At Rated Voltage
1 HP
Terminal Clamp
Brass
Flammability
Rated V-0 per UL 94
Ground Clips
Brass
Termination
Back or Side Wire
Device Type
Duplex Receptacle Outlet
Terminal Accom.
14-10 AWG solid or stranded
Line Contacts
Brass
Grounding Screw
Plated Steel
Wire
3
Pole
2
Body Material
Polycarbonate
ANSI
C-73
Certification/Listing
UL, CSA, NOM-ANCE

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
