  11. Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

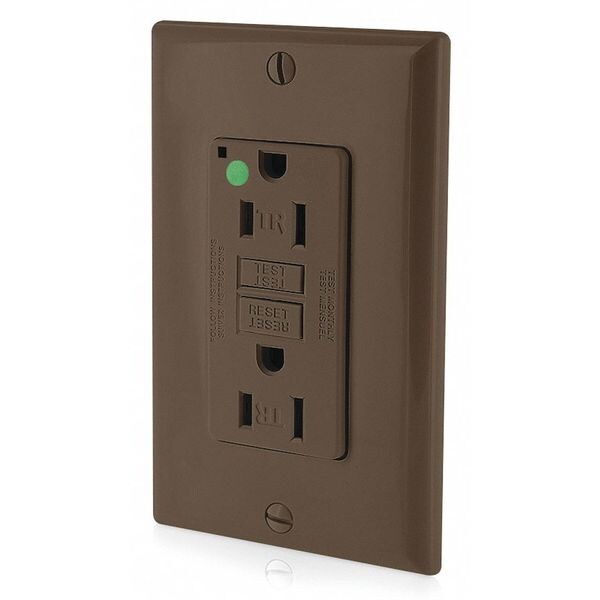

Leviton Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFTR1-HG - main

Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFTR1-HG

  • Zoro # G804392919

product price: $30.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-HG
Zoro #
G804392919
UPC #
07847772364
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NOM-ANCE, UL 498, UL 943, UL Listed
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Color
Brown
Outlet Type - Plugs and Receptacles
Duplex
Color - Plugs and Receptacles
Brown
Voltage
125 VAC
Self-Testing
Yes
Surge Suppression
Yes
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
Amps - Plugs and Receptacles
15 A
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back, Side
Item - Plugs and Receptacles
GFCI Receptacle
Application Environment
Hospital Grade
Voltage Rating
125V AC
Horsepower Rating
1 hp
Self Testing
Yes
Wire Connection Type
Screw Terminals
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Mount Type
Flush
Hub Type
Feed Through
UL 94 Flammability Rating
V-0
Grade
Hospital Grade Fed. Spec.
Includes Mounting Hardware
Yes
Contact Material
Brass
Resistance Properties
Tamper Resistant
Maximum Operating Temperature
150.8 Degrees F
Includes
Wallplate
Surge Protection
Yes
Minimum Operating Temperature
-31 Degrees F
Torque Range
14-18 in.-lbs
Flammability
Rated V-0 per UL 94
Feature
Wallplate Included|Tamper-Resistant|Power Indication
Grounding Screw
Plated Steel
Pole
2
Ground Clips
Brass
Line Contacts
Brass
Amperage
15 A & 20 A Feed-Through
Device Type
Duplex Receptacle Outlet
Body Material
Polycarbonate
Terminal Accom.
14-10 AWG solid or stranded
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
ANSI
C-73
Short Circuit Current Rating
10kA
Operating Temperature
-35C to +66C
Function
GFCI
Screw Terminal Torque
14-18 in-lbs
Strap Material
Galvanized Steel
Termination
Back or Side Wire
NEMA
WD-1 & WD-6
Face Material
PBT
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Wire
3
At Rated Voltage
1 HP
Terminal Screws
Plated Steel
Shutter Mechanism
Delrin® Acetal
Certification/Listing
UL, CSA, NOM-ANCE
Terminal Clamp
Brass

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
