  11. Recept, Gray, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

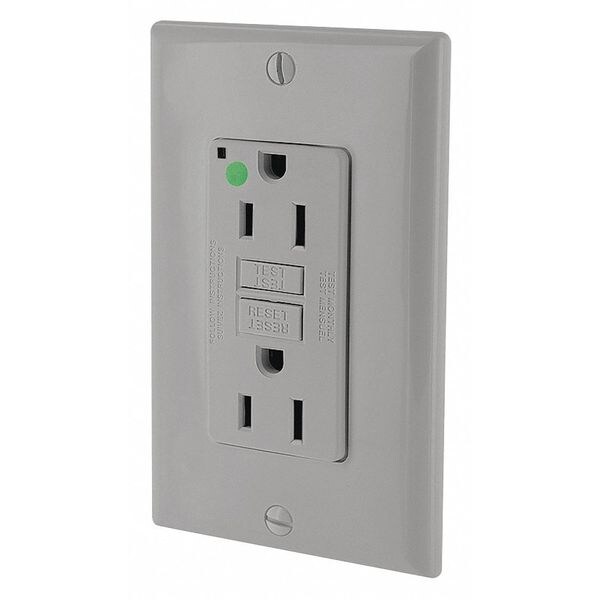

Leviton Recept, Gray, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT1-HGG - main

Recept, Gray, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT1-HGG

  • Zoro # G804392902

product price: $30.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-HGG
Zoro #
G804392902
UPC #
07847772505
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Gray
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
HP
1 hp
Surge Suppression
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Voltage - Plugs and Receptacles
125V
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Hospital Grade
Amps - Plugs and Receptacles
15 A
Wiring Method
Back, Side
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
No
Voltage
125 VAC
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Power Indicator
Yes
Color - Plugs and Receptacles
Gray
Color
Gray
Maximum Operating Temperature
150.8 Degrees F
Hub Type
Feed Through
Grade
Hospital Grade Fed. Spec.
Includes Mounting Hardware
Yes
Surge Protection
Yes
Minimum Operating Temperature
-31 Degrees F
Receptacle Type
Decorator Duplex
Includes
Power Indication, Wallplate
Self Testing
Yes
Wire Connection Type
Screw Terminals
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Mount Type
Flush
Contact Material
Brass
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
NEMA
WD-1 & WD-6
Face Material
PBT
Device Type
Duplex Receptacle Outlet
Pole
2
Wire
3
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Line Contacts
Brass
Strap Material
Galvanized Steel
Certification/Listing
UL, CSA, NOM-ANCE
Ground Clips
Brass
Function
GFCI
Flammability
Rated V-0 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-35C to +66C
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Terminal Screws
Plated Steel
Terminal Clamp
Brass
Terminal Accom.
14-10 AWG solid or stranded
Amperage
15 A & 20 A Feed-Through
Termination
Back or Side Wire
ANSI
C-73
Feature
Wallplate Included|Power Indication|Self-Test
Grounding Screw
Plated Steel
Short Circuit Current Rating
10kA
Body Material
Polycarbonate

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
