  11. Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

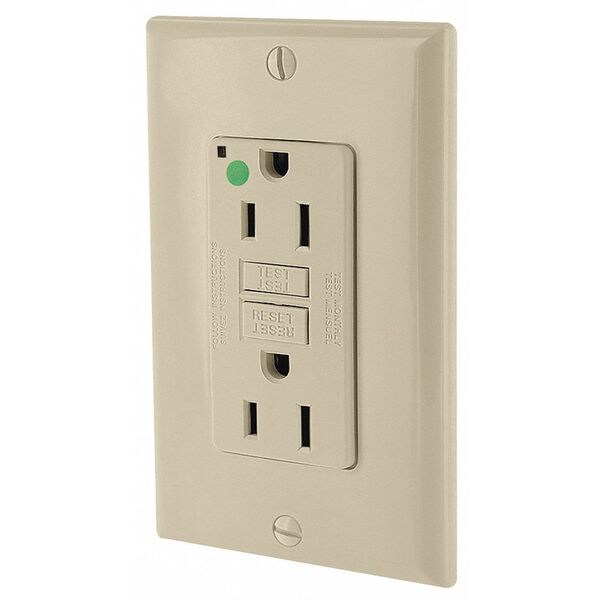

Leviton Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT1-HGI - main

Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT1-HGI

  • Zoro # G604392904

product price: $31.15
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-HGI
Zoro #
G604392904
UPC #
07847772502
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Ivory
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
GFCI Receptacle
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Self-Testing
Yes
Power Indicator
Yes
HP
1 hp
Wiring Method
Back, Side
Voltage
125 VAC
Color - Plugs and Receptacles
Ivory
Tamper Resistant
No
Color
Ivory
Amps - Plugs and Receptacles
15 A
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V
Application Environment
Hospital Grade
Contact Material
Brass
Surge Protection
Yes
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Includes Mounting Hardware
Yes
Mount Type
Flush
UL 94 Flammability Rating
V-0
Receptacle Type
Decorator Duplex
Horsepower Rating
1 hp
Visual Indicator Lights
Power Connected
Maximum Operating Temperature
150.8 Degrees F
Hub Type
Feed Through
Minimum Operating Temperature
-31 Degrees F
Self Testing
Yes
Grade
Hospital Grade Fed. Spec.
Includes
Power Indication, Wallplate
Ground Clips
Brass
Screw Terminal Torque
14-18 in-lbs
Certification/Listing
UL, CSA, NOM-ANCE
Flammability
Rated V-0 per UL 94
Face Material
PBT
Function
GFCI
Wire
3
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature
Wallplate Included|Power Indication
Termination
Back or Side Wire
Grounding Screw
Plated Steel
Terminal Accom.
14-10 AWG solid or stranded
Short Circuit Current Rating
10kA
Terminal Screws
Plated Steel
Body Material
Polycarbonate
NEMA
WD-1 & WD-6
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Operating Temperature
-35C to +66C
Amperage
15 A & 20 A Feed-Through
At Rated Voltage
1 HP
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Pole
2
Line Contacts
Brass
Strap Material
Galvanized Steel
Terminal Clamp
Brass

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
