  11. Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

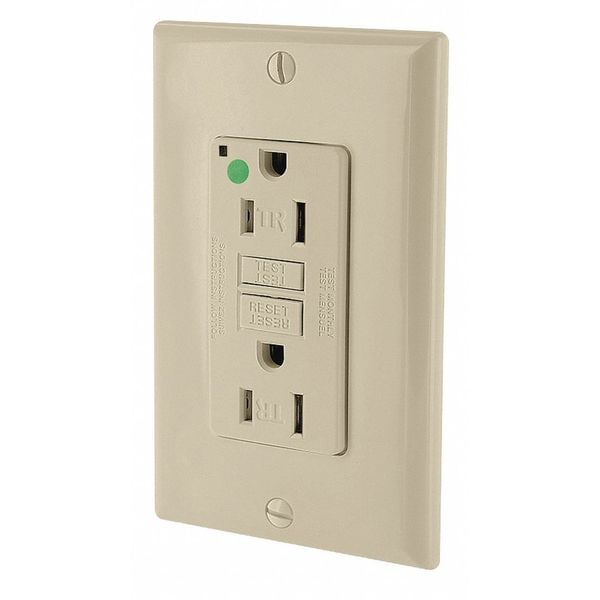

Leviton Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFTR1-HGI - main

Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFTR1-HGI

  • Zoro # G604392799

product price: $29.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-HGI
Zoro #
G604392799
UPC #
07847772370
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NOM-ANCE, UL 498, UL 943, UL Listed
Amps - Plugs and Receptacles
15 A
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Surge Suppression
Yes
Application Environment
Hospital Grade
Voltage - Plugs and Receptacles
125V
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
HP
1 hp
Item - Plugs and Receptacles
GFCI Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Self-Testing
Yes
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Color
Ivory
Voltage
125 VAC
Color - Plugs and Receptacles
Ivory
Wiring Method
Back, Side
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Surge Protection
Yes
Wire Connection Type
Screw Terminals
Includes
Wallplate
Self Testing
Yes
Hub Type
Feed Through
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Grade
Hospital Grade Fed. Spec.
Mount Type
Flush
Receptacle Type
Decorator Duplex
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Terminal Accom.
14-10 AWG solid or stranded
Pole
2
Termination
Back or Side Wire
NEMA
WD-1 & WD-6
Grounding Screw
Plated Steel
Body Material
Polycarbonate
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Amperage
15 A & 20 A Feed-Through
Operating Temperature
-35C to +66C
Function
GFCI
Torque Range
14-18 in.-lbs
Terminal Screws
Plated Steel
Certification/Listing
UL, CSA, NOM-ANCE
Ground Clips
Brass
Wire
3
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Shutter Mechanism
Delrin® Acetal
Strap Material
Galvanized Steel
Face Material
PBT
Terminal Clamp
Brass
Short Circuit Current Rating
10kA
Line Contacts
Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature
Wallplate Included|Tamper-Resistant|Power Indication
Device Type
Duplex Receptacle Outlet
ANSI
C-73
Flammability
Rated V-0 per UL 94

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
