  11. Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

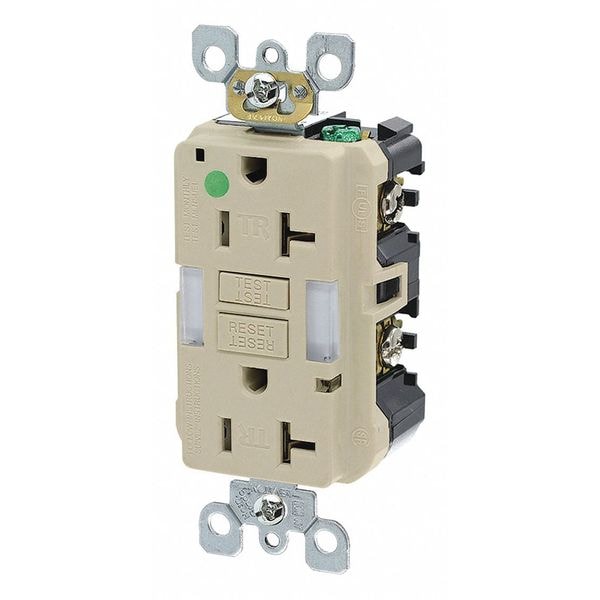

Leviton Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK GFNL2-HGI - main

Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNL2-HGI

  • Zoro # G004392948

product price: $46.39
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL2-HGI
Zoro #
G004392948
UPC #
07847772353
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Height
2.7 in
Face Plate Width
1.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
1.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
Power Indicator
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Color - Plugs and Receptacles
Ivory
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Tamper Resistant
Yes
Application Environment
Hospital Grade
Amps - Plugs and Receptacles
20 A
Weather Resistant - Plugs and Receptacles
No
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Color
Ivory
Surge Suppression
Yes
Voltage
125 VAC
Voltage - Plugs and Receptacles
125V
Wiring Method
Back, Side
Surge Protection
Yes
Includes
Strap Material
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Includes Mounting Hardware
Yes
Self Testing
Yes
UL 94 Flammability Rating
V-0
Visual Indicator Lights
Power Connected
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Decorator Duplex
Contact Material
Brass
Voltage Rating
125V AC
Mount Type
Flush
Minimum Operating Temperature
-31 Degrees F
Grade
Hospital Grade Fed. Spec.
Line Contacts
Brass
Pole
2
Flammability
Rated V-0 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Shutter Mechanism
Delrin® Acetal
Body Material
Polycarbonate
Function
GFCI
Ground Clips
Brass
Terminal Screws
Plated Steel
Termination
Back or Side Wire
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Device Type
Duplex Receptacle Outlet
Terminal Accom.
14-10 AWG solid or stranded
Certification/Listing
UL, CSA, NOM-ANCE
Wire
3
NEMA
WD-1 & WD-6
Feature
Tamper-Resistant|Power Indication
ANSI
C-73
Strap Material
Galvanized Steel
Operating Temperature
-35C to +66C
Short Circuit Current Rating
10kA
Terminal Clamp
Brass
Grounding Screw
Plated Steel
Amperage
20 A
Face Material
PBT
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
