  11. Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK

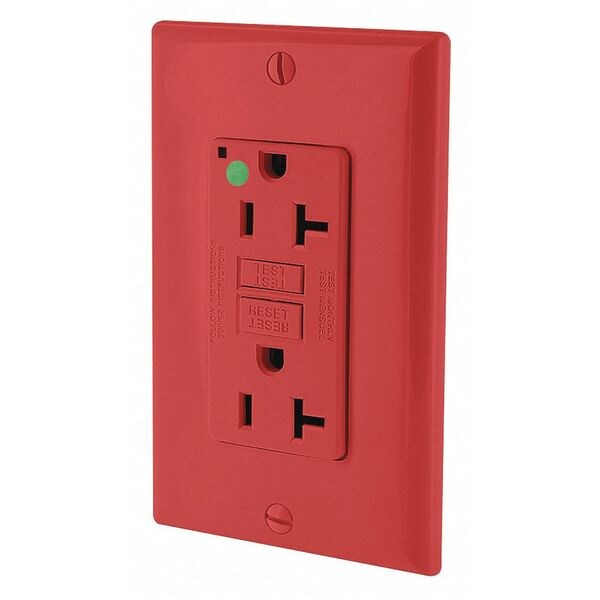

Leviton Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK GFNT2-HGR - main

Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFNT2-HGR

  • Zoro # G704392873

product price: $36.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGR
Zoro #
G704392873
UPC #
07847772511
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Red
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Color - Plugs and Receptacles
Red
Voltage - Plugs and Receptacles
125V
Color
Red
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Amps - Plugs and Receptacles
20 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Hospital Grade
Self-Testing
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
No
Item - Plugs and Receptacles
GFCI Receptacle
Voltage
125 VAC
Power Indicator
Yes
Surge Suppression
Yes
Contact Material
Brass
Grade
Hospital Grade Fed. Spec.
Horsepower Rating
1 hp
Maximum Operating Temperature
150.8 Degrees F
UL 94 Flammability Rating
V-0
Self Testing
Yes
Mount Type
Flush
Voltage Rating
125V AC
Minimum Operating Temperature
-31 Degrees F
Wire Connection Type
Screw Terminals
Receptacle Type
Decorator Duplex
Includes
Wallplate
Visual Indicator Lights
Power Connected
Includes Mounting Hardware
Yes
Surge Protection
Yes
Operating Temperature
-35C to +66C
Feature
Wallplate Included|Power Indication|Self-Test
NEMA
WD-1 & WD-6
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Terminal Clamp
Brass
At Rated Voltage
1 HP
Screw Terminal Torque
14-18 in-lbs
Flammability
Rated V-0 per UL 94
Terminal Accom.
14-10 AWG solid or stranded
Function
GFCI
Short Circuit Current Rating
10kA
Line Contacts
Brass
Amperage
20 A
Device Type
Duplex Receptacle Outlet
Pole
2
Body Material
Polycarbonate
Ground Clips
Brass
Face Material
PBT
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Certification/Listing
UL, CSA, NOM-ANCE
Grounding Screw
Plated Steel
ANSI
C-73
Terminal Screws
Plated Steel
Wire
3
Termination
Back and Side Wire
Strap Material
Galvanized Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
