  11. Recept, Wht, 15 A, GFCI, 2P3W, Back; Side, 1PK

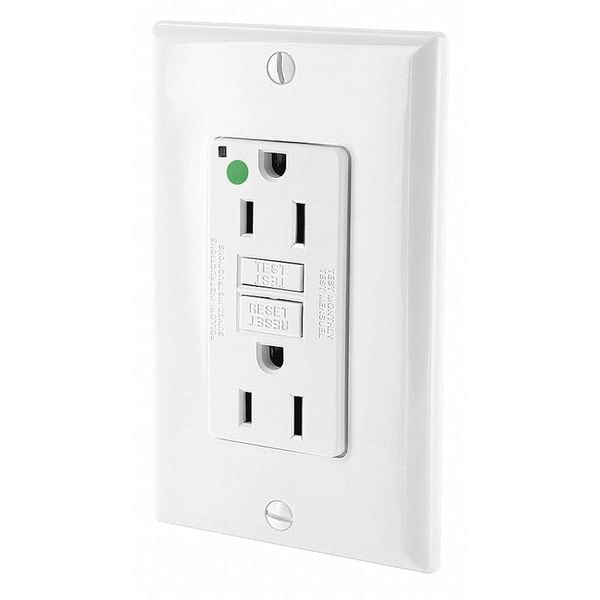

Leviton Recept, Wht, 15 A, GFCI, 2P3W, Back; Side, 1PK GFNT1-HGW - main

Recept, Wht, 15 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFNT1-HGW

  • Zoro # G204392915

product price: $31.25
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-HGW
Zoro #
G204392915
UPC #
07847772503
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Application Environment
Hospital Grade
Power Indicator
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Duplex
Amps - Plugs and Receptacles
15 A
HP
1 hp
Self-Testing
Yes
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Item - Plugs and Receptacles
GFCI Receptacle
Color - Plugs and Receptacles
White
Surge Suppression
Yes
Wiring Method
Back, Side
Voltage - Plugs and Receptacles
125V
Surge Protection
Yes
Hub Type
Feed Through
Mount Type
Flush
Contact Material
Brass
Maximum Operating Temperature
150.8 Degrees F
Grade
Hospital Grade Fed. Spec.
Receptacle Type
Decorator Duplex
Includes
Power Indication, Wallplate
Self Testing
Yes
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Visual Indicator Lights
Power Connected
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-31 Degrees F
Voltage Rating
125V AC
UL 94 Flammability Rating
V-0

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
