  11. Recept, Wht, 20 A, GFCI, 2P3W, Back; Side, 1PK

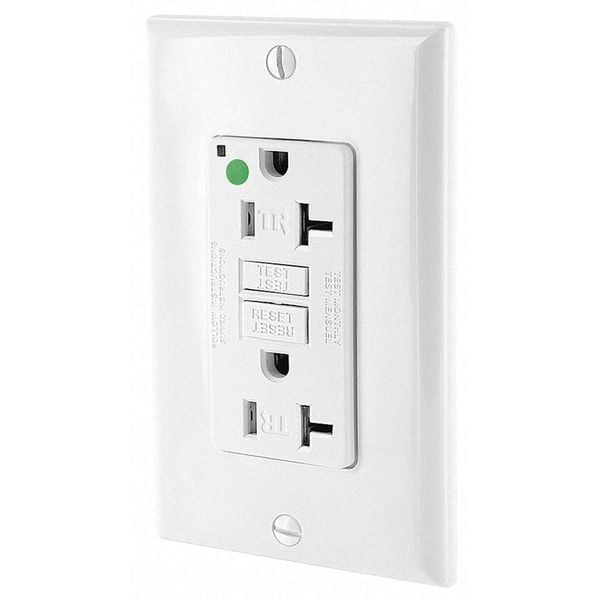

Leviton Recept, Wht, 20 A, GFCI, 2P3W, Back; Side, 1PK GFTR2-HGW - main

Recept, Wht, 20 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFTR2-HGW

  • Zoro # G104392923

product price: $33.89
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-HGW
Zoro #
G104392923
UPC #
07847772382
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed
Amps - Plugs and Receptacles
20 A
Color - Plugs and Receptacles
White
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Color
White
Wiring Method
Back, Side
Tamper Resistant
Yes
Power Indicator
Yes
Voltage - Plugs and Receptacles
125V
Surge Suppression
Yes
Application Environment
Hospital Grade
Self-Testing
Yes
HP
1 hp
Item - Plugs and Receptacles
GFCI Receptacle
Voltage
125 VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Maximum Operating Temperature
150.8 Degrees F
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Self Testing
Yes
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-31 Degrees F
Horsepower Rating
1 hp
Includes
Wallplate
Wire Connection Type
Screw Terminals
Receptacle Type
Decorator Duplex
Grade
Hospital Grade Fed. Spec.
Hub Type
Feed Through
Contact Material
Brass
Surge Protection
Yes
Resistance Properties
Tamper Resistant
Mount Type
Flush
Strap Material
Galvanized Steel
Termination
Back and Side Wire
Grounding Screw
Plated Steel
NEMA
WD-1 & WD-6
Pole
2
Shutter Mechanism
Delrin® Acetal
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Line Contacts
Brass
Face Material
PBT
Short Circuit Current Rating
10kA
Feature
Wallplate Included|Tamper-Resistant|Power Indication
Amperage
20 A
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-35C to +66C
Terminal Accom.
14-10 AWG solid or stranded
Terminal Screws
Plated Steel
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Flammability
Rated V-0 per UL 94
Terminal Clamp
Brass
Function
GFCI
Ground Clips
Brass
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Wire
3
Certification/Listing
UL, CSA, NOM-ANCE
Body Material
Polycarbonate

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
