Receptacle Outlet, 20A, Black, 125V

Mfr # 5362-IGE
Zoro # G022982107

Key Features

Mount Hole Center-to-Center Height

3.3 in

Connection Orientation

Straight

Overall Depth

1.1 in

Voltage Rating

125V AC

Wire Connection Type

Screw Terminals

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5362-IGE
Zoro #: G022982107
UPC #: 078477509289
Country of Origin: Mexico

Dimensions

Mount Hole Center-to-Center Height: 3.3 in
Overall Depth: 1.1 in
Minimum Wire Size: 14 AWG
Face Plate Width: 1.4 in
Face Plate Height: 2.8 in
Maximum Wire Size: 10 AWG

Details

Connection Orientation: Straight
Voltage Rating: 125V AC
Wire Connection Type: Screw Terminals
Horsepower Rating: 1 hp
Resistance Properties: Impact Resistant
UL 94 Flammability Rating: V-2
Housing Color: Black
Market: Industrial

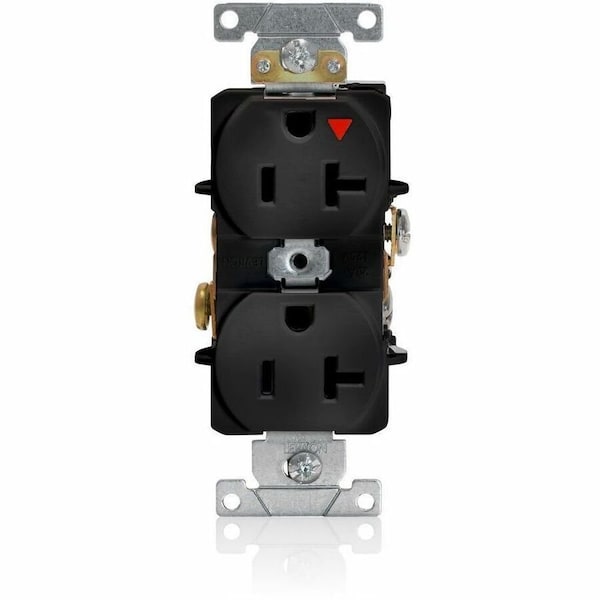

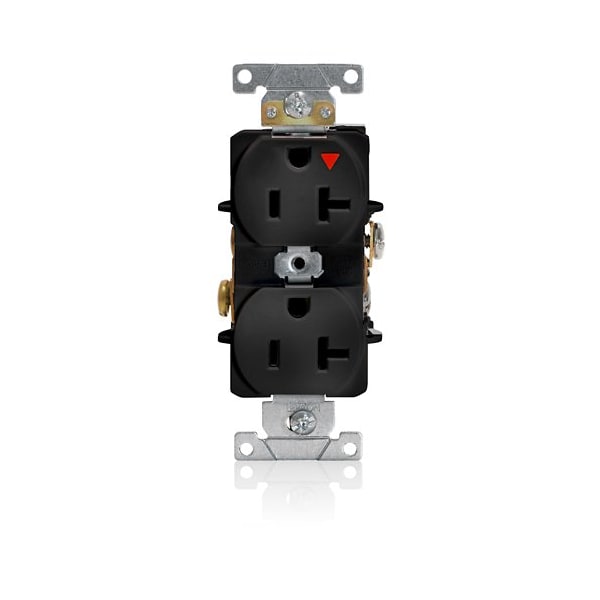

Item: Isolated Ground Duplex Receptacle Outlet
Receptacle Type: Duplex
Number of Outlets: 2
For Environment: Food and Beverage, Oily/Greasy
Standards: CSA, FULS Marking, UL
Wiring Method: Back/Side
NEMA Receptacle Configuration: 5-20R
Grounding: Grounded
Number of Wires: 3
Minimum Operating Temperature: -40 Degrees C
Contact Material: Phosphor Bronze
Housing Material: PBT Polyester
Number of Poles: 2
Features: Smooth Face
Current Rating: 20 A
Maximum Operating Temperature: 75 Degrees C

Description

Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Black, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
