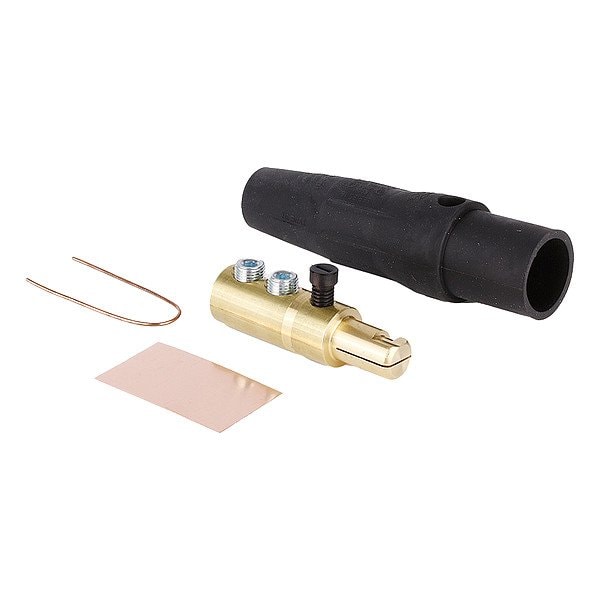

Series Taper Nose Cam, 400A, Male
Mfr # 16D24-4UE
Zoro # G322982067
product price:Â $37.59
/eaKey Features
Series
16
Wire Rope Length
6.07 in
End Type
Taper Nose
Standards
CSA, NEC, UL
Current Rating
400 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16D24-4UE
- Zoro #
- G322982067
- UPC #
- 078477877784
- Country of Origin
- Mexico
Dimensions
- Wire Rope Length
- 6.07 in
- Maximum Wire Size
- 4/0 AWG
- Overall Width
- 1.72 in
- Overall Length
- 6.07 in
Details
- Series
- 16
- End Type
- Taper Nose
- Standards
- CSA, NEC, UL
- Current Rating
- 400 A
- Voltage Rating
- 600V AC, 600V DC
- Resistance Properties
- Weather Resistant, Shatter and Crack Resistant
- Housing Material
- Thermoplastic Elastomer
- Contact Material
- Brass
- Terminal Connection Type
- Double Set Screw
- Minimum Operating Temperature
- -40 Degrees F
- NEMA Enclosure Rating
- 3R
- Maximum Operating Temperature
- 185 Degrees F
- Item
- Series Taper Nose Cam
- Contact Type
- Single Cam
- For Location
- Outdoor
- Housing Color
- Black
- Gender
- Male
Description
Series Taper Nose Cam, Contact Material Brass, Current Rating 400 A, Gender Male, Housing Color Black, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Terminal Connection Type Double Set Screw, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, NEMA Enclosure Rating 3R, Standards CSA, NEC, UL, Contact Type Single Cam, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Length 6.07 in
