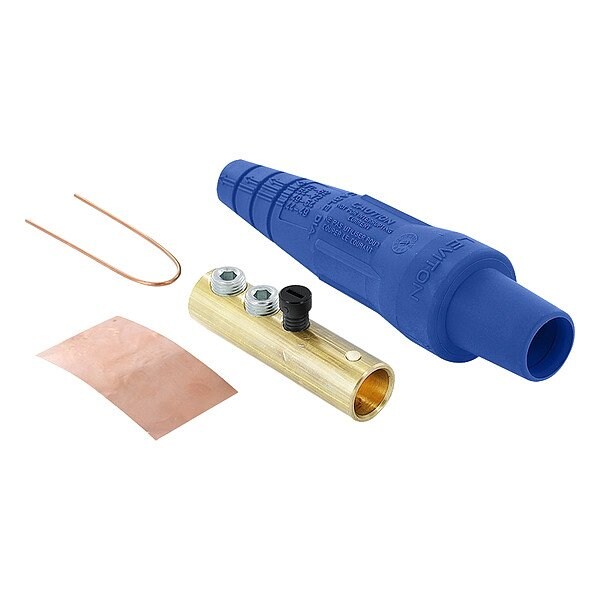

Single Pole Inline, 300 A, Female, Blue
Mfr # 16D31-UB
Zoro # G922587471
product price:Â
$
34.15
/ea
Key Features
Current Rating
300 A
Terminal Connection Type
Double Set Screw
Minimum Wire Size
2 AWG
End Type
Taper Nose
Voltage Rating
600V AC, 600V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16D31-UB
- Zoro #
- G922587471
- UPC #
- 78477715314
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 2 AWG
- Wire Rope Length
- 6.83 in
- Overall Width
- 1.72 in
- Maximum Wire Size
- 2/0 AWG
- Overall Length
- 6.83 in
- Length
- 6.83 in
Details
- Current Rating
- 300 A
- Terminal Connection Type
- Double Set Screw
- End Type
- Taper Nose
- Voltage Rating
- 600V AC, 600V DC
- Contact Material
- Brass
- Item
- Single Pole Inline
- Housing Color
- Blue
- Resistance Properties
- Weather Resistant, Shatter and Crack Resistant
- Gender
- Female
- Series
- 16
- For Location
- Outdoor
- Standards
- CSA, NEC, UL
- NEMA Enclosure Rating
- 3R
- Housing Material
- Thermoplastic Elastomer
Description
Single Pole Inline, Contact Material Brass, Current Rating 300 A, Gender Female, Housing Color Blue, Housing Material Thermoplastic Elastomer, Maximum Wire Size 2/0 AWG, Minimum Wire Size 2 AWG, Terminal Connection Type Double Set Screw, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, NEMA Enclosure Rating 3R, Standards CSA, NEC, UL, For Location Outdoor, Overall Length 6.83 in, Overall Width 1.72 in, Resistance Properties Weather Resistant, Shatter and Crack Resistant
