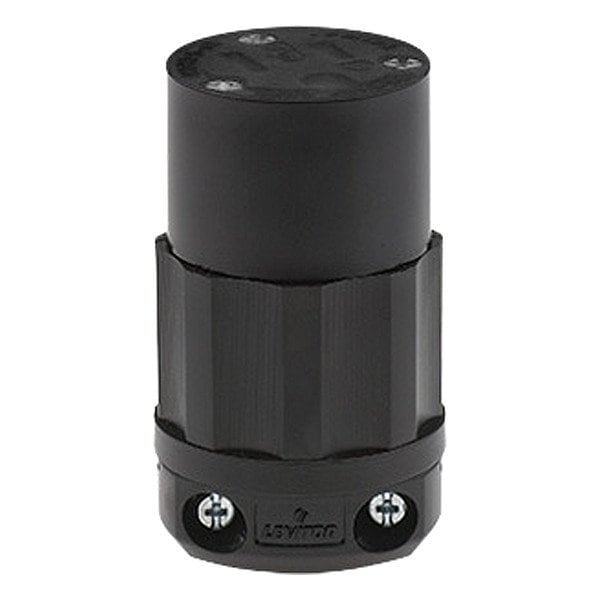

Straight Blade Connector, 15 A, Black
Mfr # 5269-CB
Zoro # G822587229
product price:Â
$
26.75
/ea
Key Features
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5269-CB
- Zoro #
- G822587229
- UPC #
- 78477825266
- Country of Origin
- Mexico
- Item
- Straight Blade Connector
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Connection Orientation
- Straight
- Shrouded
- Yes
- Grounding
- Grounded
- Housing Color
- Black
- Cap Type
- No Cap or Cover
- IP Rating
- Not Rated
- Standards
- ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13399, UL Fed Spec WC-596 File E13393
- Resistance Properties
- Chemical Resistant, Impact Resistant
- Housing Material
- Impact Modified Nylon
- Horsepower Rating
- 1/2 hp
- Power Indicating Light
- No
- Series
- Hubbell: HBL5269C
- Market
- Industrial
- Maximum Operating Temperature
- 60 Degrees C
- Contact Material
- Brass
- For Environment
- Dry
- Minimum Operating Temperature
- -40 Degrees C
Description
Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.7 in, For Minimum Cable Diameter 0.25 in, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material Impact Modified Nylon, IP Rating Not Rated
