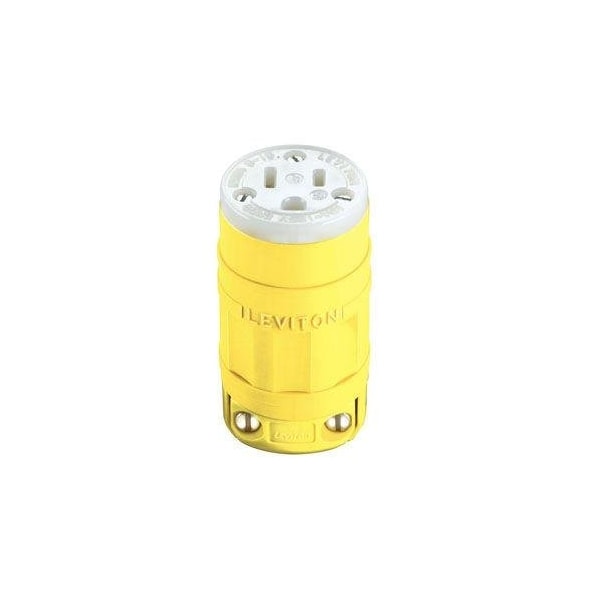

Straight Blade Connector
Mfr # 1547
Zoro # G616091383
product price: $29.19
/eaKey Features
Wire Connection Type
Screw Terminals
For Environment
Dry
Minimum Wire Size
18 AWG
Number of Poles
2
Overall Length
3 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1547
Zoro #
G616091383
UPC #
078477848142
Country of Origin
Mexico
Dimensions
Minimum Wire Size
18 AWG
Overall Length
3 in
Maximum Wire Size
12 AWG
Details
Item
Straight Blade Connector
Wire Connection Type
Screw Terminals
For Environment
Dry
Number of Poles
2
Resistance Properties
Impact Resistant
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP44
Maximum Operating Temperature
60 Degrees C
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Connection Orientation
Straight
Market
Industrial
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 57, UL 498, UL FED SPEC WC-596 File E13393
Housing Material
Santoprene TPV
Grounding
Grounded
UL 94 Flammability Rating
V-2
Number of Wires
3
Housing Color
Yellow
Current Rating
15 A
Phase
Single
Description
Connector,Straight Blade,Yellow
