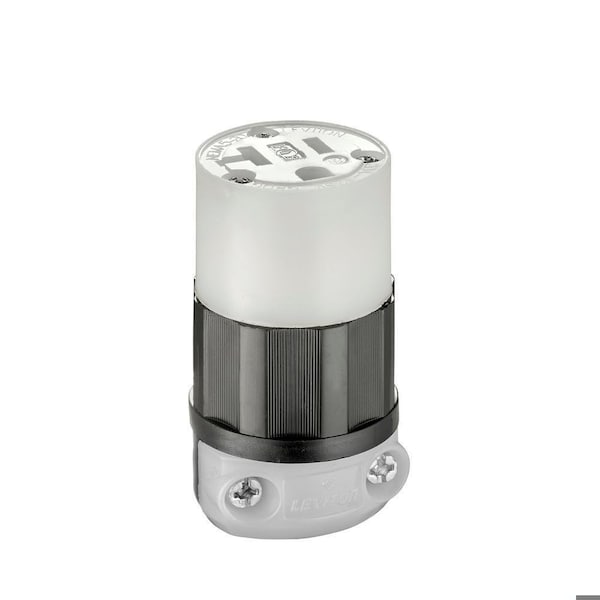

Straight Blade Connector
Mfr # 5369-C
Zoro # G816091428
product price: $35.19
/eaKey Features
Housing Material
Impact Modified Nylon
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration
5-20R
Overall Length
2.76 in
Current Rating
20 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5369-C
Zoro #
G816091428
UPC #
078477795941
Country of Origin
Mexico
Dimensions
Overall Length
2.76 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Details
Item
Straight Blade Connector
Housing Material
Impact Modified Nylon
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Number of Poles
2
Housing Color
Black, White
UL 94 Flammability Rating
HB
For Environment
Dry
Market
Industrial
Maximum Operating Temperature
60 Degrees C
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grounding
Grounded
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, RoHS, UL 498, File E13399, UL FED SPEC WC-596 File E13393
Number of Wires
3
Voltage Rating
125V AC
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Contact Material
Brass
Phase
Single
Description
Connector,Straight Blade,Black/White
