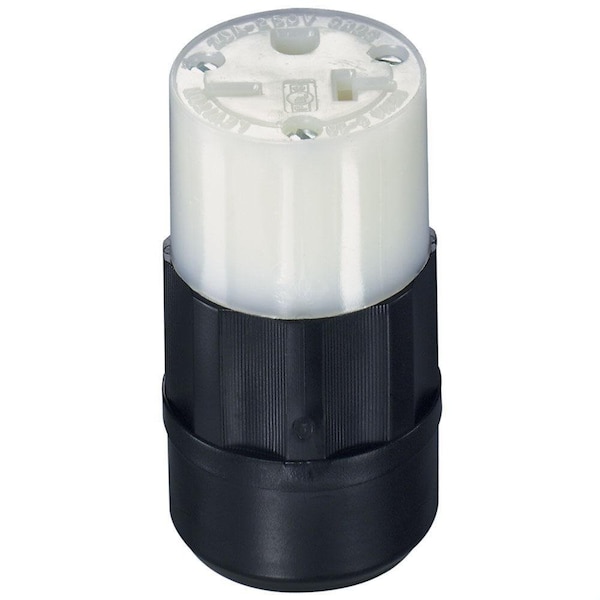

Straight Blade Connector
Mfr # 5469-C
Zoro # G816091367
product price: $38.19
/eaKey Features
Market
Industrial
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees C
Number of Wires
3
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, RoHS, UL 498, File E13399, UL FED SPEC WC-596 File E13393
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5469-C
Zoro #
G816091367
UPC #
078477796047
Country of Origin
Mexico
Dimensions
Maximum Wire Size
10 AWG
Overall Length
2.76 in
Minimum Wire Size
18 AWG
Details
Item
Straight Blade Connector
Market
Industrial
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees C
Number of Wires
3
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, RoHS, UL 498, File E13399, UL FED SPEC WC-596 File E13393
Housing Material
Impact Modified Nylon
NEMA Receptacle Configuration
6-20R
For Environment
Dry
Current Rating
20 A
Connection Orientation
Straight
Voltage Rating
250V AC
Number of Poles
2
Maximum Operating Temperature
60 Degrees C
Contact Material
Brass
Grounding
Grounded
Wire Connection Type
Screw Terminals
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Housing Color
Black, White
Phase
Single
Description
Connector,Straight Blade,Black/White
