  11. Straight Blade Plug, 18-50P, 50 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded

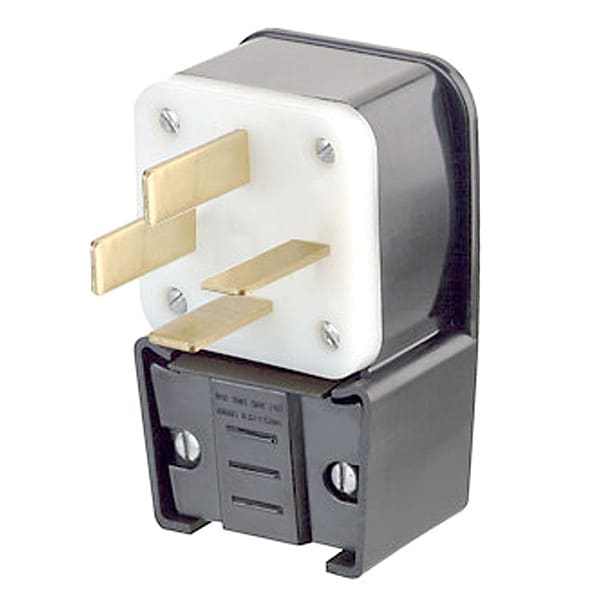

Leviton Straight Blade Plug, 18-50P, 50 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded 8352-P - main

Straight Blade Plug, 18-50P, 50 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded

  • Mfr # 8352-P

  • Zoro # G304256094

product price: $70.19
/ea

Key Features

NEMA Plug Configuration
18-50P
Phase
Three
Number of Poles
4
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8352-P
Zoro #
G304256094
UPC #
07847781008
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.375 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 10.375 in
Minimum Wire Size
10 AWG
Maximum Wire Size
4 AWG
Body Length
1.89 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
18-50P
Current Rating
50 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Crack Resistant, Moisture Resistant, Shatter Resistant
Number of Wires
4
Phase - Plugs and Receptacles
Three
Grade - Plugs and Receptacles
Industrial
HP
7-1/2
NEMA Plug Configuration - Plugs and Receptacles
18-50P
Material
Super Tough Nylon
Grade
General Use
Special Features
Ratings are permanently marked on device
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
Housing Material
Super Tough Nylon
Blade Material
Brass
Market
Industrial
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
UL 94 Flammability Rating
V-2
Insulation Material
Nylon
Horsepower Rating
7 1/2 hp
Dielectric Strength
Withstands 2000V per UL498
Body Material
Super Tough Nylon
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Assembly Screws
Steel, Zinc Plated
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temp.
-40°C to 60°C
Wire Gauge
10-4 AWG; Up to 4 AWG

Description

Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Non-Grounded, Horsepower Rating 7 1/2 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 18-50P, Number of Blades 4, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
