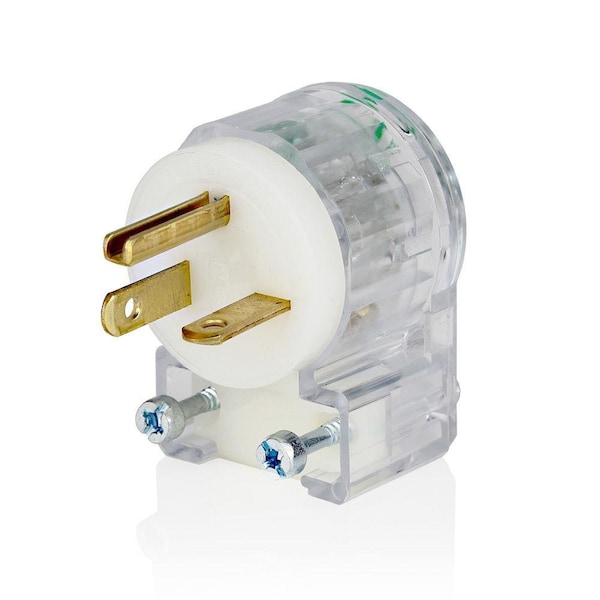

Straight Blade Plug, 250V AC
Mfr # 8415-CAT
Zoro # G016091280
product price: $38.99
/eaKey Features
Overall Length
1.57 in
Housing Color
Black, White
Current Rating
20 A
Housing Material
Super Tough Nylon
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8415-CAT
Zoro #
G016091280
UPC #
078477954836
Country of Origin
Mexico
Dimensions
Overall Length
1.57 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Details
Item
Straight Blade Plug
Housing Color
Black, White
Current Rating
20 A
Housing Material
Super Tough Nylon
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Number of Poles
2
Market
Industrial
Number of Wires
3
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Maximum Operating Temperature
60 Degrees C
Contact Material
Brass
Grounding
Grounded
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, RoHS, UL 498, File E13399, UL FED SPEC WC-596 File E13393
Connection Orientation
Straight
Phase
Single
Description
Plug, Straight Blade,Hospital Grade
