  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

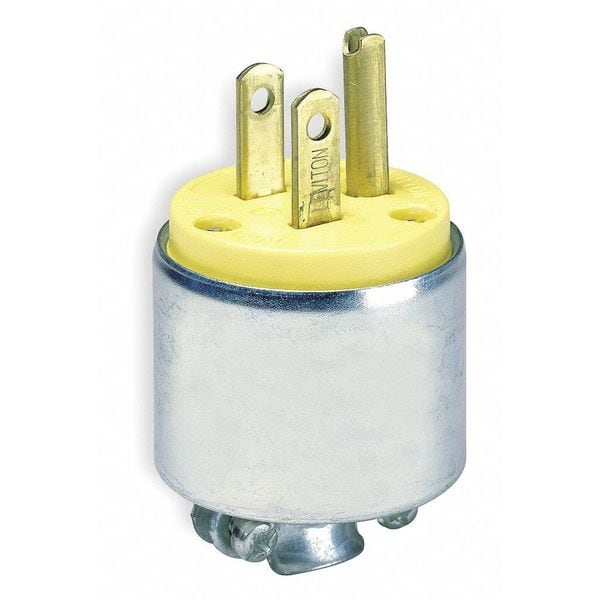

Leviton Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded 515PA - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 515PA

  • Zoro # G304836531

product price: $5.79
/ea
Sold in multiples of 10 for $57.90

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
515PA
Zoro #
G304836531
UPC #
07847784168
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.245 in
Cord Size
0.245 in to 0.655 in
Maximum Wire Size
12 AWG
Outside Diameter
1.55 in
Minimum Wire Size
18 AWG
Body Length
1.89 in
Face Diameter
1.38 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Grade
General
Special Features
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
Number of Wires
3
Material
PVC/Steel
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
Housing Material
PVC/Steel
UL 94 Flammability Rating
V-2
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees F
Polarized
No
Body Material
PVC / Steel
Dielectric Strength
Withstands 2000V per UL498
Assembly Screws
Steel, Zinc Plated
Operating Temp.
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-2 per UL 94
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Wire Gauge
18-12 AWG

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.38 in, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.245 in, Grade General
