  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

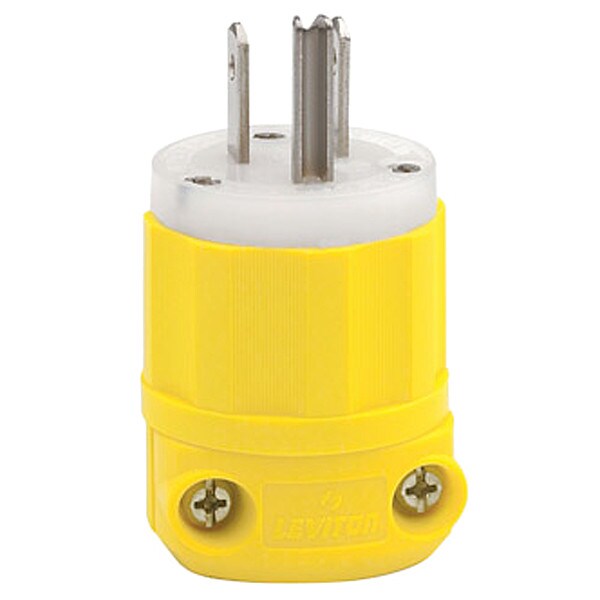

Leviton Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded 52CM-66C - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 52CM-66C

  • Zoro # G204256095

product price: $15.99
/ea

Key Features

NEMA Plug Configuration
5-15P
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52CM-66C
Zoro #
G204256095
UPC #
07847779524
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.43 in
For Minimum Cable Diameter
0.218 in
Cord Size
0.218 in to 0.43 in
Outside Diameter
1.53 in
Body Length
1.98 in
Face Diameter
1.39 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White, Yellow
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Special Features
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
Corrosion Resistant
Yes
Material
Super Tough ST801 Nylon
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Grade
General Use
Number of Wires
3
Market
Industrial
Housing Material
Super Tough ST801 Nylon
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
Insulation Material
Nylon
Maximum Operating Temperature
140 Degrees F
For Environment
Corrosive
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Polarized
Yes
Blade Material
Brass
Operating Temp.
-40°C to 60°C
Face Material
Nylon
Dielectric Strength
Withstands 2000V per UL498
Clamp Insert
Nylon
Wire Gauge
18-10 AWG
Cord-Clamp
Nylon
Terminal Screws
Nickel-Plated Brass 8-32
Environment
Corrosive
Flammability
Rated V-2 per UL 94
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Super Tough ST801 Nylon
Screw Terminal Torque
12-14 in-lbs
Assembly Screws
Stainless Steel 300
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color White, Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in, For Maximum Cable Diameter 0.43 in
