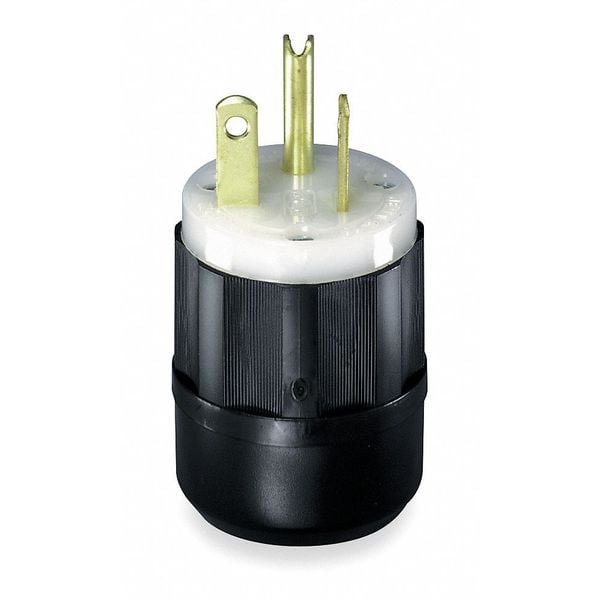

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 5366-C

  • Zoro # G204836525

product price:  $13.49
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5366-C
Zoro #
G204836525
UPC #
07847779587
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.685 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.23 in to 0.685 in
Face Diameter
1.39 in
Minimum Wire Size
18 AWG
Outside Diameter
1.53 in
Maximum Wire Size
10 AWG
Body Length
1.98 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Material
Impact Modified Nylon
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
Number of Wires
3
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
For Environment
Dry
Polarized
Yes
Market
Industrial
Blade Material
Brass
Horsepower Rating
1/2 hp
Insulation Material
Nylon
Shrouded
No
Environment
Dry
Operating Temp.
-40°C to 60°C
Terminal Screws
Brass
Assembly Screws
Steel, Zinc Plated
Clamp Insert
Nylon
Dielectric Strength
Withstands 2000V per UL498
Body Material
Impact Modified Nylon
Cord-Clamp
Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated HB or better UL94
Wire Gauge
18-10 AWG
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Torque Range
10-14 in-lbs
Series
Insulgrip
Power Indicating Light
No

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in
