  11. Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

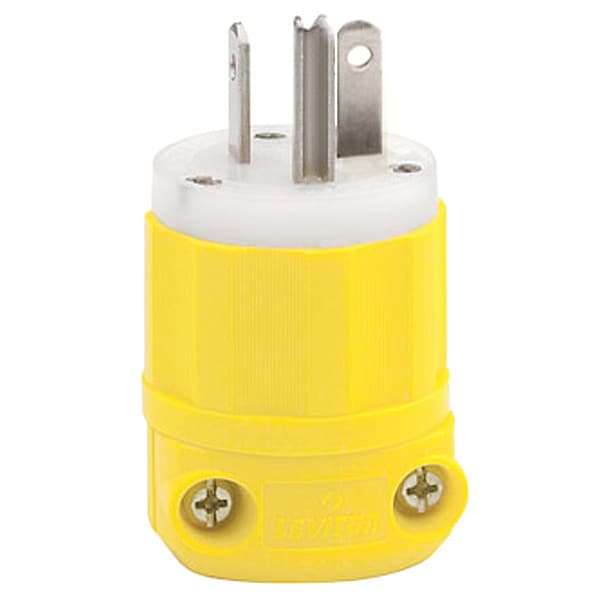

Leviton Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded 53CM-66C - main

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 53CM-66C

  • Zoro # G604256091

product price: $16.39
/ea

Key Features

NEMA Plug Configuration
5-20P
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53CM-66C
Zoro #
G604256091
UPC #
07847779589
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.43 in
For Minimum Cable Diameter
0.218 in
Cord Size
0.218 in to 0.43 in
Face Diameter
1.39 in
Outside Diameter
1.53 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.98 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White, Yellow
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Material
Super Tough ST801 Nylon
Grade
General Use
Corrosion Resistant
Yes
NEMA Configuration
5-20
Number of Wires
3
Grade - Plugs and Receptacles
Industrial
NEMA Rating
WD-6
Special Features
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
Insulation Material
Nylon
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Market
Industrial
Shrouded
No
UL 94 Flammability Rating
V-2
For Environment
Corrosive
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Housing Material
Super Tough ST801 Nylon
Blade Material
Brass
Dielectric Strength
Withstands 2000V per UL498
Flammability
Rated V-2 per UL 94
Clamp Insert
Nylon
Environment
Corrosive
Operating Temp.
-40°C to 60°C
Terminal Screws
Nickel-Plated Brass 8-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Cord-Clamp
Nylon
Assembly Screws
Stainless Steel 300
Body Material
Super Tough ST801 Nylon
Screw Terminal Torque
12-14 in-lbs
Wire Gauge
18-10 AWG
Face Material
Nylon

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color White, Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
