  11. Straight Blade Plug, 6-30P, 6-50P, 30/50 A, 250V AC, 2 Pole, Screw Terminals, Grounded

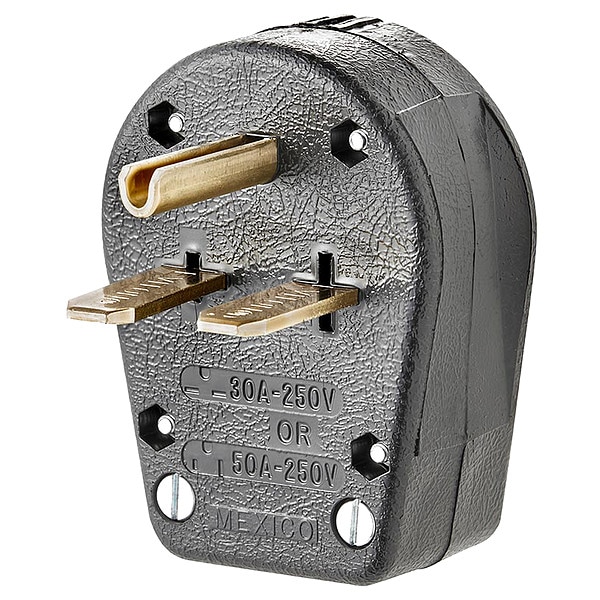

Leviton Straight Blade Plug, 6-30P, 6-50P, 30/50 A, 250V AC, 2 Pole, Screw Terminals, Grounded 931-E - main

Straight Blade Plug, 6-30P, 6-50P, 30/50 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 931-E

  • Zoro # G504393353

product price: $33.39
/ea

Key Features

NEMA Plug Configuration
6-30P, 6-50P
Current Rating
30/50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
931-E
Zoro #
G504393353
UPC #
07847764492
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.05 in
For Minimum Cable Diameter
0.63 in
Cord Size
0.63 in to 10.05 in
Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-30P, 6-50P
Current Rating
30/50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Watertight
Number of Wires
3
Material
Thermoplastic
Grade - Plugs and Receptacles
Commercial
NEMA Plug Configuration - Plugs and Receptacles
6-30P; 6-50P
Special Features
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
Grade
Commercial
Blade Material
Brass
Market
Commercial
Housing Material
Thermoplastic
Horsepower Rating
2 hp
Polarized
No
For Location
Indoor, Outdoor
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Operating Temp.
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Strength
Withstands 2000V per UL498
Body Material
Thermoplastic
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Assembly Screws
Steel, Zinc Plated
Wire Gauge
10-6 AWG

Description

Plug, Connection Orientation Angled, Current Rating 30 A, 50 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 6-30P, 6-50P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.05 in, For Minimum Cable Diameter 0.63 in, Grade Commercial, Housing Material Thermoplastic, Market Commercial

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
