  11. Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

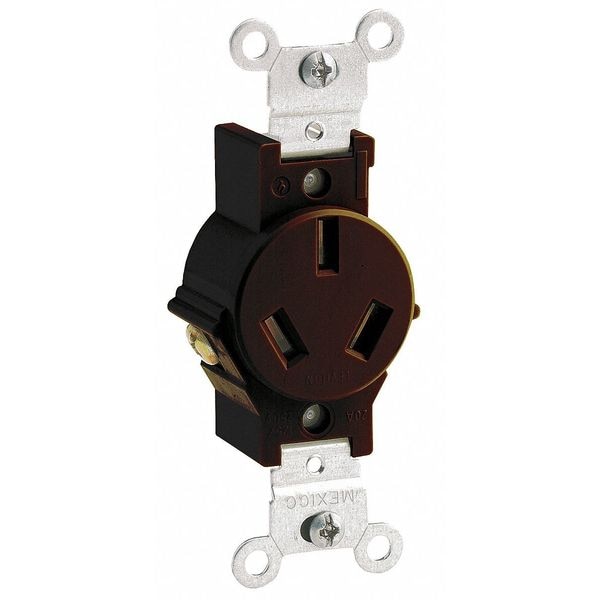

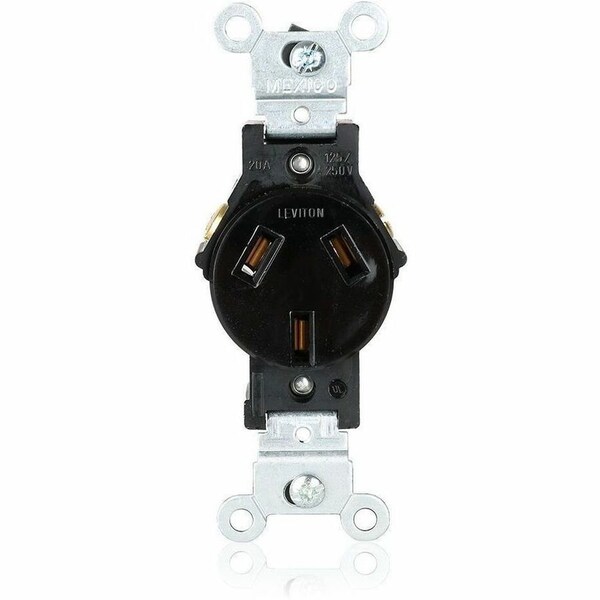

Leviton Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded 5032 - main

Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

  • Mfr # 5032

  • Zoro # G504393308

product price: $10.69
/ea
Sold in multiples of 10 for $106.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
10-20R
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5032
Zoro #
G504393308
UPC #
07847720810
Country of Origin
Mexico

Dimensions

Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Face Plate Height
2.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Flange Type
Non-Flanged
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Material
Nylon (Body and Face)
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
10-20R
HP
1 hp, 2 hp
Special Features
Dual Voltage
UL 94 Flammability Rating
V-2
Includes
Strap Material
Horsepower Rating
2 hp
Market
Commercial
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
Number of Outlets
1
GFCI
No
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Cover Type
No Cover
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Polarized
Yes
Connection Orientation
Straight
Device Type
Single Receptacle Outlet
Termination
Side Wire
Terminal Accom.
14-10 AWG
Face Material
Nylon
Terminal ID
Brass-Hot (x2), Silver-Neutral
Current Limiting
Full Rated Current
Body Material
Nylon
Pole
3
Grounding Screw
Brass 8-32
Strap Material
Steel
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
UL498
File E13399
Line Contacts
Brass Double Wipe .031 Thick
Terminal Screws
Brass 8-32
ANSI
C-73
Flammability
Rated V-2 per UL 94
Feature 3
Dual Voltage
Feature 4
Smooth Face
Screw Terminal Torque
14-18 in-lbs
CSA C22.2 No. 42
File 152105
At Rated Voltage
2 HP L-L / 1 HP L-N
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Wire
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Non-Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 10-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
