  6. Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Surface Mount, Non-Grounded

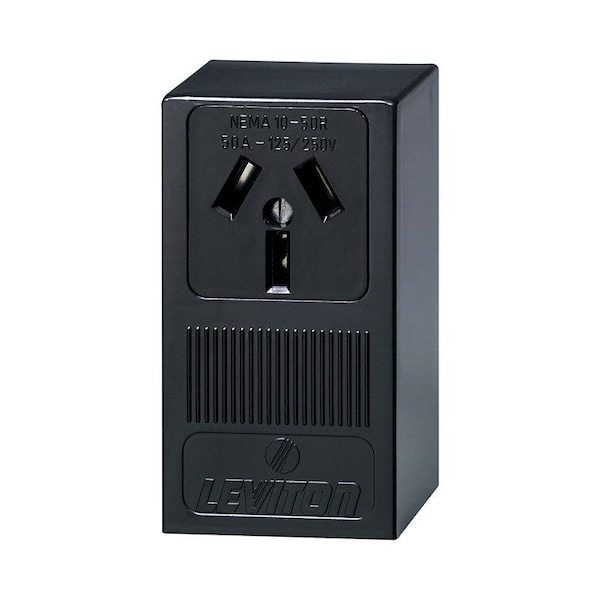

Leviton Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Surface Mount, Non-Grounded 05050-P00 - main

Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Surface Mount, Non-Grounded

  • Mfr # 05050-P00

  • Zoro # G3858000

product price:  $11.89
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
05050-P00
Zoro #
G3858000
UPC #
78477982327
Country of Origin
United States

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Surface
Standards
ANSI C73, CSA C22.2 No. 42, NEMA : WD-6, NOM 057 Certified, UL 498
Flange Type
Non-Flanged
CSA C22.2 No. 42
File 152105
At Rated Voltage
3 HP
UL498
File E13399
Body Material
Thermoplastic
Terminal Accom.
#4 - #8AWG
Pole
3
Face Material
Thermoplastic
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Wire
3
Flammability
Rated V-2 per UL 94
Strap Material
Galvanized Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
ANSI
C-73
Current Limiting
Full Rated Current
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498

Description

Built of durable thermoplastic, Leviton Power Receptacles-come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.


  • • Side wired
  • • Steel strap material
  • • Replacement dryer cord
  • •
  • •
