  11. Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black

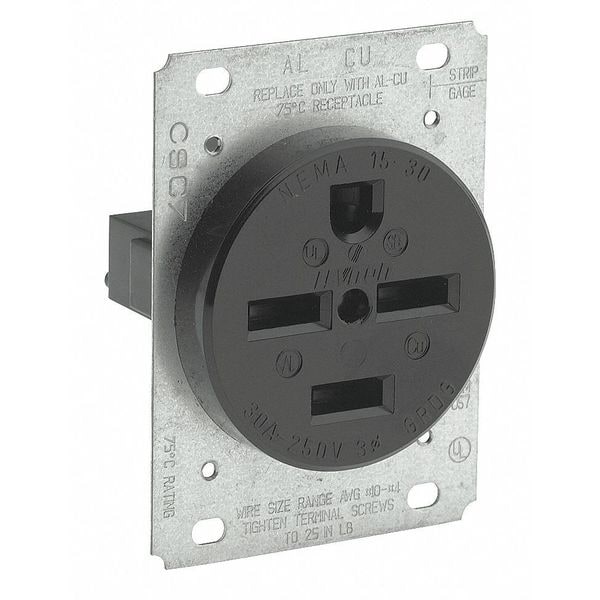

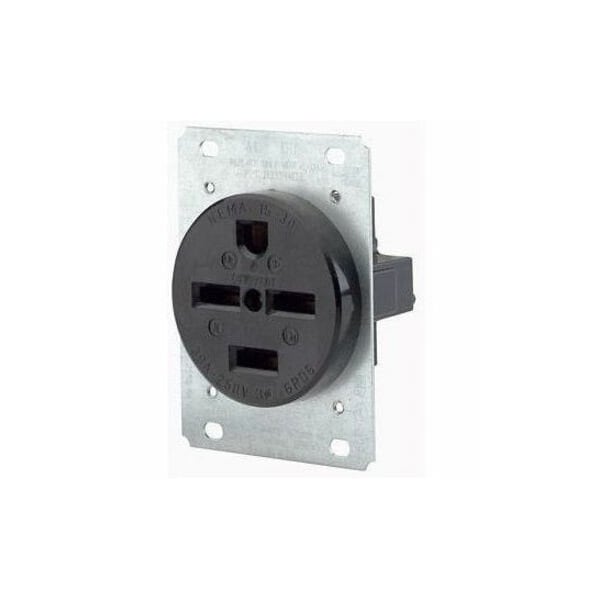

Leviton Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black 8430 - main

Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black

  • Mfr # 8430

  • Zoro # G904836528

product price: $43.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
15-30R
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8430
Zoro #
G904836528
UPC #
07847784330
Country of Origin
Mexico

Dimensions

Face Plate Width
2.8 in
Face Plate Height
3.8 in
Minimum Wire Size
4 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, UL 498 File E13399
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
250 VAC
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
15-30R
HP
3 hp
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
NEMA Configuration
15-30
Application Environment
Industrial
Material
Nylon (Body and Face)
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Polarized
Yes
Hub Type
Dead End
AFCI
No
Flange Shape
Rectangular
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
GFCI
No
Grade
Federal Specification
Key Resistance Properties
Tamper Resistant
Cover Type
No Cover
Wire Connection Types
Screw Terminals
Surge Protection
No
Number of Poles & Wires
3 Pole / 4 Wire
Primary Resistance Properties
Tamper Resistant - Tamper Resistant - 30 A
NEMA Enclosure Rating
Not Rated
Horsepower Rating
3 hp
Shrouded
No
Additional Electrical Protection
Standard Protection
Number of Outlets
1
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Pole
3
Current Limiting
Full Rated Current
At Rated Voltage
3 HP
Operating Temperature
-40°C to 60°C
Face Material
Nylon
Wire
4
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Terminal Accom.
Up to 4 AWG
Dielectric Voltage
Withstands 2000V per UL498
CSA C22.2 No. 42
File 152105
Device Type
Power Device
ANSI
C-73
Body Material
Nylon
Line Contacts
Brass Double-Wipe
Strap Material
Galvanized Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL498
File E13399

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Recessed, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 15-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant
