  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

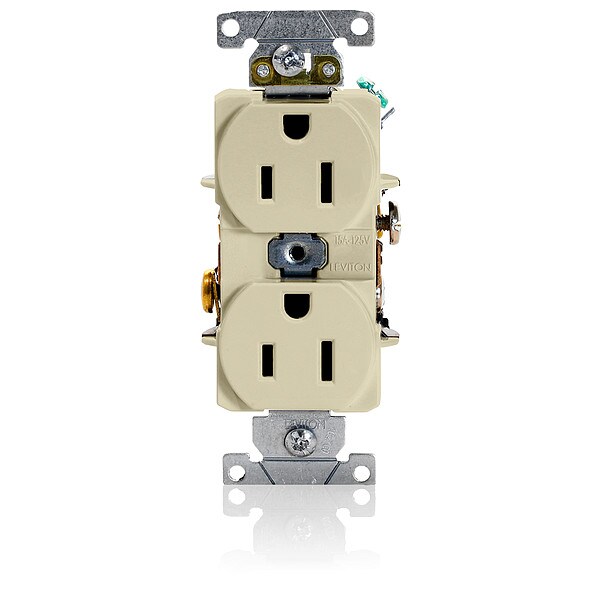

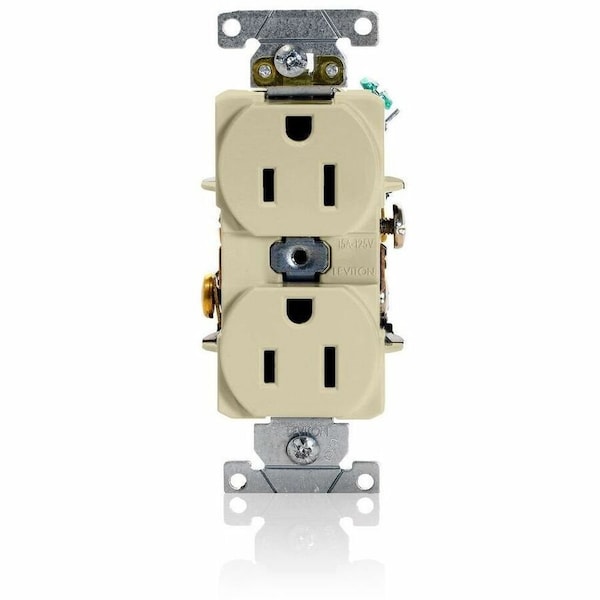

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5252-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5252-I

  • Zoro # G404256024

product price: $5.59
/ea
Sold in multiples of 10 for $55.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5252-I
Zoro #
G404256024
UPC #
07847781955
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
HP
1/2 hp
Material
Nylon (Body and Face)
Housing Material
Nylon
Cover Type
No Cover
Includes Mounting Hardware
Yes
Contact Material
Phosphor Bronze
For Environment
Institutional
NEMA Enclosure Rating
Not Rated
Includes
Strap Material
Number of Outlets
2
Market
Commercial, Industrial
Horsepower Rating
1/2 hp
Polarized
Yes
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
GFCI
No
Grade
Federal Specification
Clamp Nuts
Galvanized Steel
ANSI
C-73
Operating Temperature
-40°C to 60°C
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
CSA C22.2 No. 42
File 152105
Flammability
Rated V-2 per UL 94
Terminal Screws
Plated Brass
Device Type
Duplex Receptacle Outlet
Face Material
Nylon
UL498
File E13399
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Nylon
Current Limiting
Full Rated Current
Wire
3
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque
14-18 in-lbs
Line Contacts
Phosphor Bronze
Strap Material
Galvanized Steel with Riveted Ground Contacts
Termination
Back or Side Wire
Ground Clips
Brass
Grounding Screw
Plated Steel
At Rated Voltage
1/2 HP
Dielectric Voltage
Withstands 2000V per UL498
Torque Range
14-16 inch pounds
Pole
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
