  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

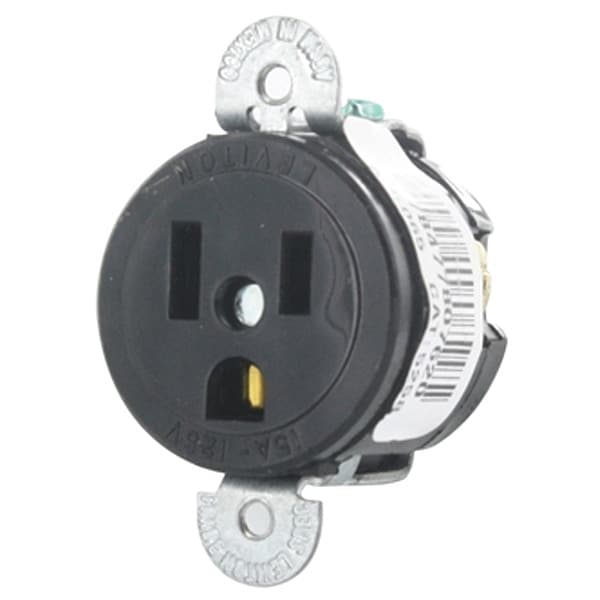

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5258-SS - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5258-SS

  • Zoro # G904256029

product price: $7.19
/ea
Sold in multiples of 10 for $71.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5258-SS
Zoro #
G904256029
UPC #
07847780762
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Face Plate Height
1.5 in
Cutout Size
1.400" +/- 0.005"

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498
Flange Type
Non-Flanged
Voltage
125 VAC
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
Cover Material
Nylon
Material
Nylon (Base)
HP
1/2 hp
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Cover Type
No Cover
Includes Mounting Hardware
Yes
GFCI
No
Horsepower Rating
1/2 hp
Connection Orientation
Straight
Grade
Federal Specification
Market
Commercial
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Number of Outlets
1
Contact Material
Brass
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
140 Degrees F
Includes
Strap Material
Minimum Operating Temperature
-40 Degrees F
Terminal Accom.
14-10 AWG
CSA C22.2 No. 42
File 152105
Flammability
Rated V-2 per UL 94
Wire
3
UL498
File E13399
Line Contacts
Plated Brass
Operating Temperature
-40°C to 60°C
Terminal Screws
Plated Steel
Torque Range
14-16 in-lbs
Grounding Screw
Plated Steel
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Pole
2
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1/2 HP
ANSI
C-73
Termination
Side
Dielectric Voltage
Withstands 2000V per UL498
Screw Terminal Torque
14-18 in-lbs
Strap Material
Galvanized Steel
Base Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
