  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

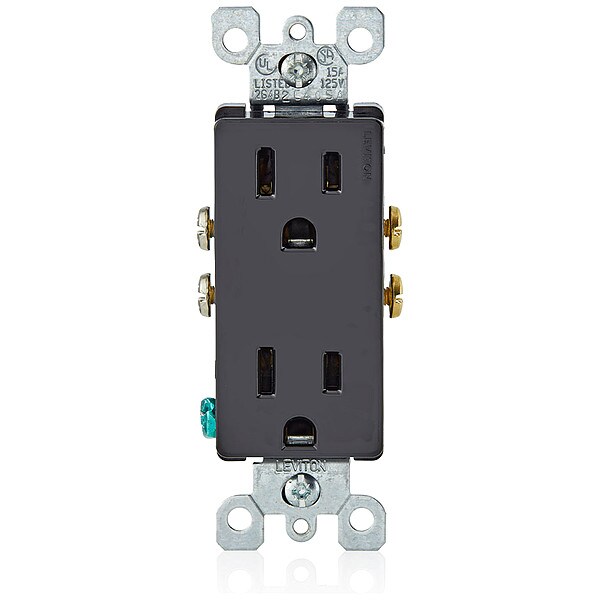

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5325-E - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5325-E

  • Zoro # G204256071

product price: $2.29
/ea
Sold in multiples of 10 for $22.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5325-E
Zoro #
G204256071
UPC #
07847735678
Country of Origin
United States

Dimensions

Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Overall Depth
1 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA C22.2 No. 42, NOM 057, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Push and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Sub-Category
Duplex Receptacles
Material
Thermoplastic (Body and Face)
Application Environment
Residential Grade
Polarized
No
NEMA Enclosure Rating
Not Rated
GFCI
No
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Grade
Federal Specification
Market
Residential
Connection Orientation
Straight
Includes
Strap Material
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Number of Outlets
2
Face Material
Thermoplastic
CSA C22.2 No. 42
File 152105; Class 6233-01
Pole
2
UL 498
File E13399
Wire
3
Torque Range
14 -18 in.-lbs
Body Material
Thermoplastic
Strap Material
Steel
Termination
Quickwire Push-In & Side

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards Class 6233-01, CSA C22.2 No. 42 File E152105

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
