  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

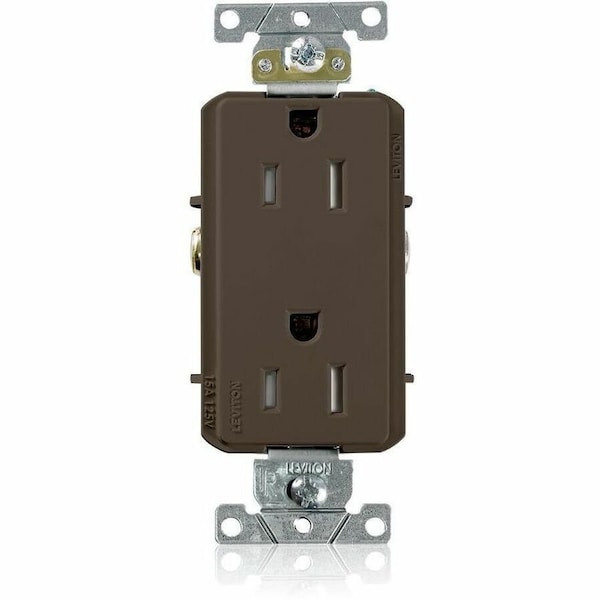

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded TDR15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # TDR15

  • Zoro # G804256006

product price: $9.49
/ea
Sold in multiples of 10 for $94.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR15
Zoro #
G804256006
UPC #
07847739210
Country of Origin
Mexico

Dimensions

Overall Depth
0.9 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
PBT Polyester Blend (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1/2 hp
Grade
Federal Specification
Horsepower Rating
1/2 hp
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Polyester
Contact Material
Brass
Market
Industrial
Includes
Cover, Wallplate
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
GFCI
No
UL 94 Flammability Rating
V-0
Flammability
Rated V-0 per UL 94
Operating Temperature
-40°C to 75°C
Temperature Rise
Max 30 °C temperature rise at full rated current
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Terminal Clamps
Brass
Shutter Mechanism
Acetal
Dielectric Voltage
Withstands 3000 V minimum
Terminal Screws
#8 Triple-Drive Brass
Ground Clips
Brass
Feature 4
Smooth Face
Strap Material
Steel (Galvanized G60)
Pole
2
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Screw Terminal Torque
14-18 in-lbs
Termination
Back or Side Wire
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Feature 2
Tamper-Resistant
Body Material
PBT Polyester Blend
Mounting Screws
Triple-Drive Plated Steel
Wire Type
Stranded or Solid
Device Type
Duplex Receptacle Outlet
Ground Contacts
0.030" Brass
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Wire
3
Certification/Listing
cULus, NOM-ANCE
ANSI
C-73
Face Material
PBT Polyester Blend
Terminal Accom.
#14 AWG - #10 AWG

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
