  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

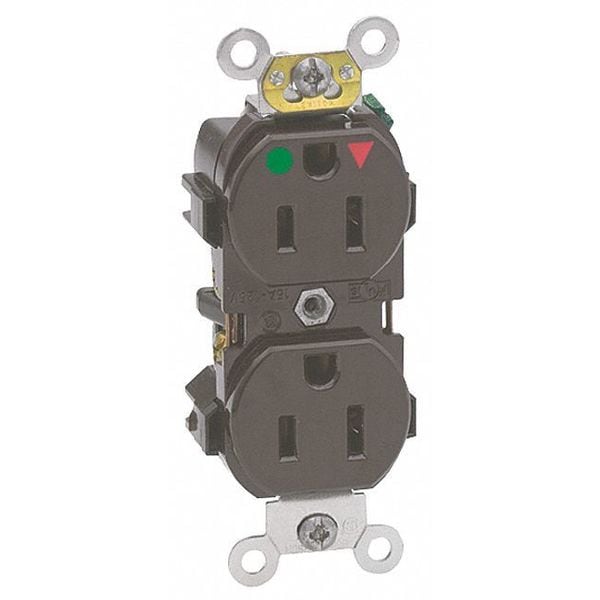

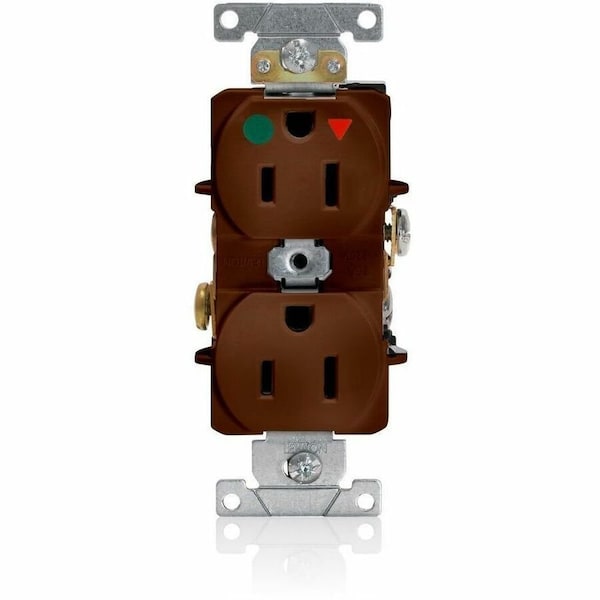

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground 8200-IGB - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # 8200-IGB

  • Zoro # G104256041

product price: $18.49
/ea
Sold in multiples of 10 for $184.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-IGB
Zoro #
G104256041
UPC #
07847705728
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
HP
1/2 hp
Material
PBT Polyester Blend (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Heavy-Duty Hospital Grade
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Number of Poles & Wires
2 Pole / 3 Wire
NEMA Enclosure Rating
Not Rated
Grade
Hospital Grade Fed. Spec.
Horsepower Rating
1/2 hp
Number of Outlets
2
Isolated Grounding
Yes
Key Resistance Properties
Standard Resistance
Connection Orientation
Straight
Additional Electrical Protection
Isolated Ground
Housing Material
PBT Thermoplastic Polyester
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Wire Connection Types
Screw Terminals
Includes Mounting Hardware
Yes
GFCI
No
UL 94 Flammability Rating
V-2
Contact Material
Phosphor Bronze
Function
Isolated Ground
Ground Clips
Brass
Dielectric Voltage
Withstands 3000V min
Temperature Rise
Max 30C temperature rise at full rated current
Ground Contacts
0030" Brass
UL498HG
File E13399
Screw Terminal Torque
14-18 in-lbs
ANSI
C-73
Line Contacts
0.030" Phosopher Bronze
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Body Material
PBT Polyester Blend
Clamp Nuts
0.030" Brass
Pole
2
Flammability
Rated V-2 per UL 94
Feature 4
Smooth Face
Mounting Screws
Triple-Drive Plated Steel
Wire Type
Stranded or Solid
Termination
Back or Side Wire
Wire
3
Device Type
Duplex Receptacle Outlet
Current Limiting
Full Rated Current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
PBT Polyester Blend
Certification/Listing
cULus, NOM-ANCE
Strap Material
Steel (Galvanized G60)
Terminal Screws
#8 Triple-Drive Brass
Terminal Clamp
Brass
Terminal Accom.
14-10 AWG
Operating Temperature
-40°C to 60°C
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
CSA C22.2 No. 42
File 152105
Shutter Mechanism
Acetal
At Rated Voltage
1/2 HP

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
