  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

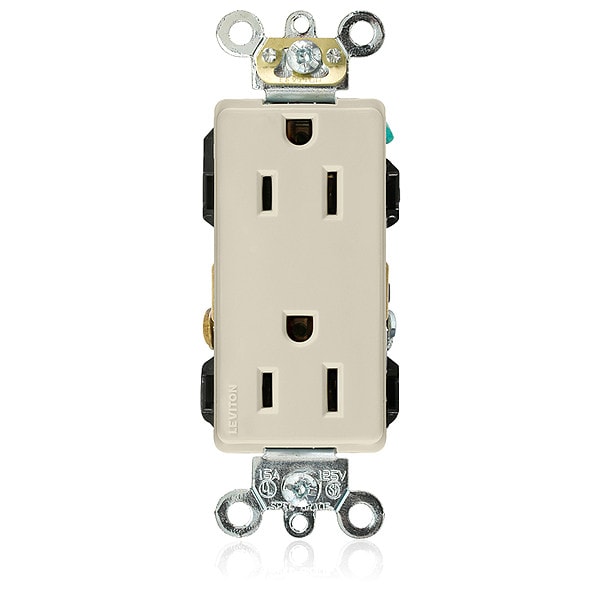

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 16262-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 16262-I

  • Zoro # G304256025

product price: $8.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16262-I
Zoro #
G304256025
UPC #
07847781941
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42 File 152105, NEMA WD-6, NOM 057, UL 498 File E13399
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Heavy-Duty Industrial Grade
Material
Thermoplastic Nylon (Body and Face)
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Includes
Strap Material
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Polarized
Yes
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Contact Material
Brass
Market
Commercial, Industrial
NEMA Enclosure Rating
Not Rated
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Housing Material
Thermoplastic
Grade
Federal Specification
At Rated Voltage
1/2 HP
Line Contacts
Brass Triple-Wipe 0.040€ Thick
Grounding Screw
Brass 8-32
Dielectric Voltage
Withstands 2000V per UL498
Face Material
Thermoplastic Nylon
Terminal Accom.
14-10 AWG
Clamp Nuts
Zinc-Plated Steel
Terminal Screws
Brass 10-32
Device Type
Duplex Receptacle Outlet
Pole
2
Operating Temperature
-40°C to 60°C
Body Material
Thermoplastic Nylon
ANSI
C-73
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
CSA C22.2 No. 42
File 152105
UL498
File E13399
Ground Clips
Brass-Plated
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Feature 4
Smooth Face
Termination
Back or Side Wire
Current Limiting
Full Rated Current
Strap Material
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
Screw Terminal Torque
14-18 in-lbs

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
