  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

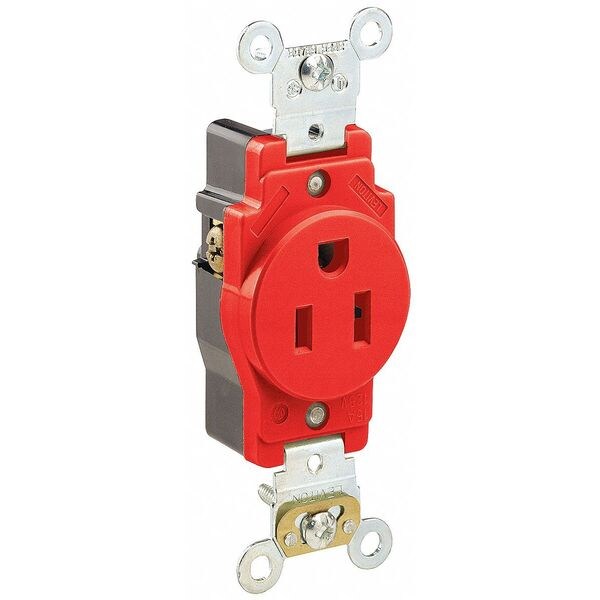

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 5261-R - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 5261-R

  • Zoro # G604393307

product price: $10.39
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5261-R
Zoro #
G604393307
UPC #
06867911757
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, NOM 057, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon (Body and Face)
Maximum Operating Temperature
140 Degrees F
GFCI
No
Includes
Strap Material
Housing Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Number of Outlets
1
Cover Type
No Cover
Market
Commercial, Industrial
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
For Environment
Institutional
Horsepower Rating
1/2 hp
Grade
Federal Specification
UL 94 Flammability Rating
V-2
Strap Material
Zinc-Plated Steel
Terminal Screws
Plated Brass
Line Contacts
Brass Triple-Wipe
At Rated Voltage
1/2 HP
Face Material
Nylon
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Grounding Screw
Plated Steel
CSA C22.2 No. 42
File 152105
Feature 4
Smooth Face
Torque Range
14-16 inch pounds
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Body Material
Nylon
Clamp Nuts
Galvanized Steel
Termination
Back or Side Wire
UL498
File E13399
Flammability
Rated V-2 per UL 94
ANSI
C-73
Ground Clips
Brass
Wire
3
Screw Terminal Torque
14-18 in-lbs
Current Limiting
Full Rated Current
Device Type
Single Receptacle Outlet
Pole
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
