  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

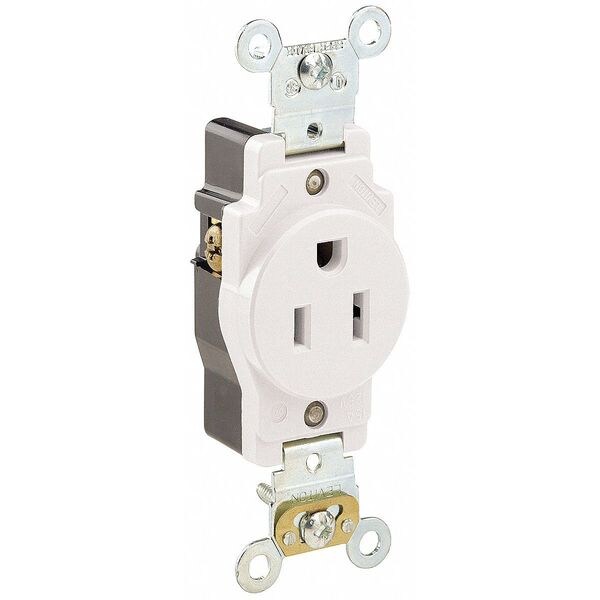

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 5261-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 5261-W

  • Zoro # G704393320

product price: $10.59
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5261-W
Zoro #
G704393320
UPC #
07847784882
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, NOM 057, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Number of Outlets
1
GFCI
No
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Horsepower Rating
1/2 hp
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Includes
Strap Material
Housing Material
Thermoplastic
Grade
Federal Specification
For Environment
Institutional
UL 94 Flammability Rating
V-2
Operating Temperature
-40°C to 60°C
Terminal Screws
Plated Brass
Face Material
Thermoplastic Nylon
ANSI
C-73
Torque Range
14-16 inch pounds
Termination
Back or Side Wire
At Rated Voltage
1/2 HP
Grounding Screw
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage
Withstands 2000V per UL498
Clamp Nuts
Galvanized Steel
Strap Material
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
Current Limiting
Full Rated Current
Feature 4
Smooth Face
Device Type
Single Receptacle Outlet
Ground Clips
Brass
Pole
2
Screw Terminal Torque
14-18 in-lbs
Body Material
Thermoplastic Nylon
Line Contacts
Brass Triple-Wipe
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Accom.
14-10 AWG
CSA C22.2 No. 42
File 152105
Wire
3
UL498
File E13399

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
