  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

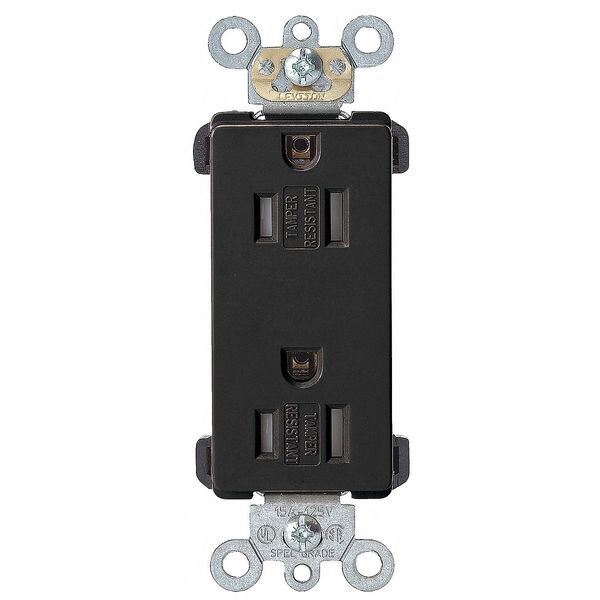

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black TDR15-E - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

  • Mfr # TDR15-E

  • Zoro # G204393271

product price: $9.69
/ea
Sold in multiples of 10 for $96.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR15-E
Zoro #
G204393271
UPC #
07847739211
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Overall Depth
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Cover, Wallplate
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Material
PBT Polyester Blend (Body and Face)
Sub-Category
Duplex Receptacles
Tamper Resistant
Yes
Application Environment
Heavy-Duty Industrial Grade
Housing Material
PBT Polyester
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1/2 hp
Maximum Operating Temperature
167 Degrees F
Market
Industrial
UL 94 Flammability Rating
V-0
Polarized
Yes
Grade
Federal Specification
Contact Material
Brass
Cover Type
No Cover
Connection Orientation
Straight
GFCI
No
Includes Mounting Hardware
Yes
Termination
Back or Side Wire
Ground Contacts
0.030" Brass
Strap Material
Steel (Galvanized G60)
Flammability
Rated V-0 per UL 94
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Screw Terminal Torque
14-18 in-lbs
Feature 2
Tamper-Resistant
Wire Type
Stranded or Solid
Pole
2
Wire
3
Terminal Accom.
#14 AWG - #10 AWG
Feature 4
Smooth Face
Ground Clips
Brass
Operating Temperature
-40°C to 75°C
Dielectric Voltage
Withstands 3000 V minimum
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Shutter Mechanism
Acetal
Certification/Listing
cULus, NOM-ANCE
Temperature Rise
Max 30 °C temperature rise at full rated current
Terminal Clamps
Brass
ANSI
C-73
Face Material
PBT Polyester Blend
Terminal Screws
#8 Triple-Drive Brass
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Device Type
Duplex Receptacle Outlet
Mounting Screws
Triple-Drive Plated Steel
Body Material
PBT Polyester Blend

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
