  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

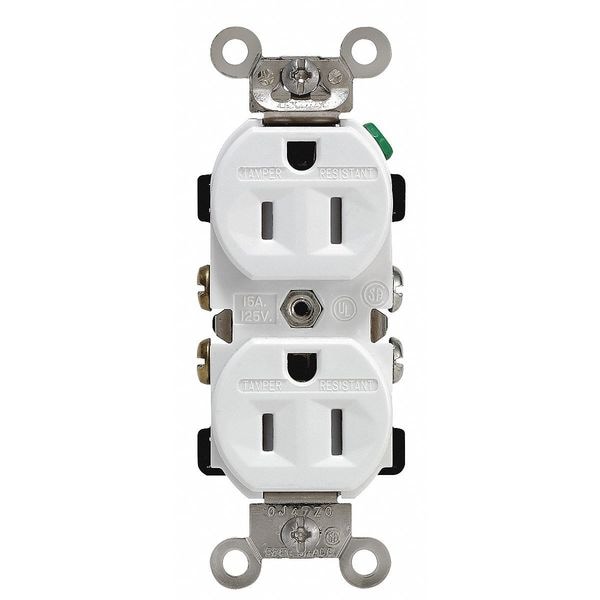

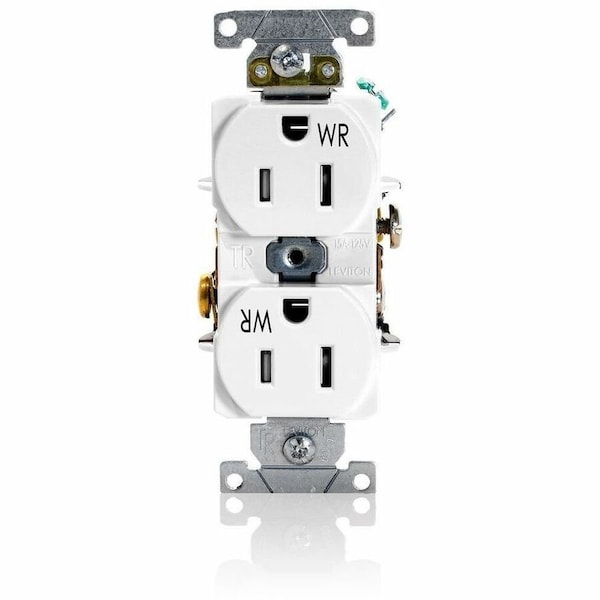

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black TWR15-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

  • Mfr # TWR15-W

  • Zoro # G704393283

product price: $9.29
/ea
Sold in multiples of 10 for $92.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TWR15-W
Zoro #
G704393283
UPC #
07847738184
Country of Origin
Mexico

Dimensions

Overall Depth
0.9 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus, cULus
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Heavy-Duty Industrial Grade
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Material
PBT Polyester Blend (Body and Face)
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Tamper Resistant
Yes
Includes
Cover, Wallplate
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
GFCI
No
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Cover Type
No Cover
Housing Material
PBT Polyester
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Contact Material
Brass
Number of Outlets
2
Polarized
Yes
Grade
Federal Specification
Includes Mounting Hardware
Yes
Ground Contacts
0.030" Brass
Body Material
PBT Polyester Blend
Certification/Listing
cULus, NOM-ANCE
Terminal Accom.
#14 AWG - #10 AWG
Wire
3
Temperature Rise
Max 30 °C after 250 cycles OL at 200 percent rated current
Grounding Screw
#8 hex head, triple drive Brass
Pole
2
Dielectric Voltage
Withstands 3000 V minimum
Terminal Screws
#8 Triple-Drive Brass
Terminal ID
Brass - Hot, Green - Ground, Silver - Neutral
Feature
Weather-Resistant|Smooth Face|Tamper-Resistant
Termination
Back or Side Wire
Screw Terminal Torque
14-18 in-lbs
ANSI
C-73
Operating Temperature
-40°C to 75°C
Ground Clips
Brass
Device Type
Duplex Receptacle Outlet
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Line Contacts
0.030" Phosphor Bronze
Strap Material
Steel
Terminal Clamps
Brass
Face Material
PBT Polyester Blend
Flammability
Rated V-0 per UL 94
Mounting Screws
Triple-Drive Plated Steel
Wire Type
Stranded or Solid

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
