  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

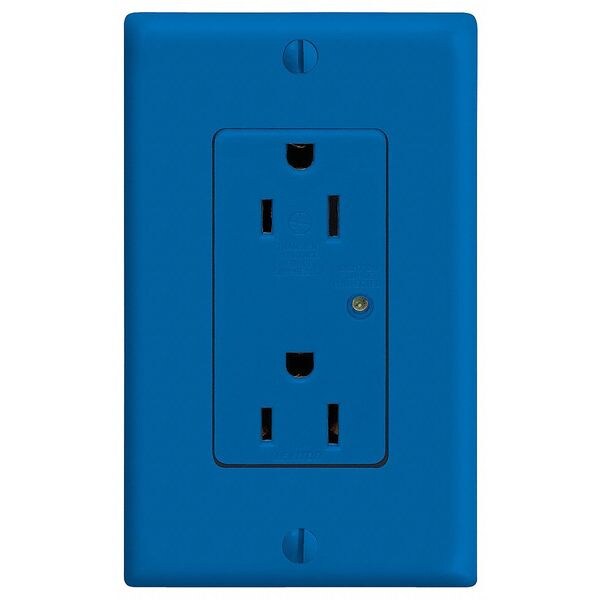

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue 5280-B - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

  • Mfr # 5280-B

  • Zoro # G304393225

product price: $37.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5280-B
Zoro #
G304393225
UPC #
07847700884
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, NEMA WD-6, NOM 057, UL 1449, UL 498
Flange Type
Non-Flanged
Surge Suppression
Yes
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Strap Material
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Sub-Category
Duplex Receptacles
UL 94 Flammability Rating
V-2
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
Contact Material
Brass
Cover Type
No Cover
Grade
General Use
Connection Orientation
Straight
Polarized
Yes
Surge Protection
Yes
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Market
Commercial, Industrial, Residential
Maximum Operating Temperature
140 Degrees F
Face Material
Thermoplastic Nylon
Clamp Nuts
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
Yoke
Zinc-Plated Steel
Shutter Mechanism
Delrin® Acetal
Terminal Screws
Brass-Plated Steel
Pole
2
Body Material
Thermoplastic Nylon
ANSI
C-73
Screw Terminal Torque
14-18 in-lbs
Ground Clips
Brass-Plated Steel
Current Limiting
Full Rated Current
Termination
Back or Side Wire
Device Type
Duplex Receptacle Outlet
Joules Rating
720
Nominal Discharge Current Rating
3kA
Operating Temperature
-40°C to 60°C
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Dielectric Voltage
Withstands 2000V per UL498
MCOV
150V rms
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Function
Surge Protective
Noise Rejection
-30dB at 500kHz-30MHz
Short Circuit Current Rating
5kA
Terminal Accom.
14-10 AWG
Diagnostics
Indicator Light
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Brass Triple-Wipe
Grounding Screw
Brass-Plated Steel
Wire
3
Torque Range
14-16 inch pounds

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
