  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

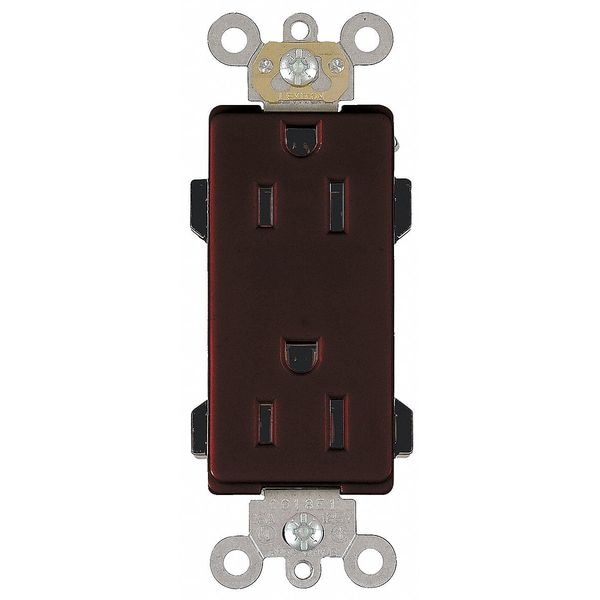

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 16252 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 16252

  • Zoro # G604393321

product price: $5.59
/ea
Sold in multiples of 10 for $55.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16252
Zoro #
G604393321
UPC #
07847781966
Country of Origin
Mexico

Dimensions

Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL Listed 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Includes
Strap Material
HP
1/2 hp
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Material
PBT Polyester Blend (Body and Face)
Outlet Type - Plugs and Receptacles
Decorator Duplex
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
Horsepower Rating
1/2 hp
Cover Type
No Cover
Grade
Federal Specification
Includes Mounting Hardware
Yes
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-2
Polarized
Yes
GFCI
No
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Polyester
Connection Orientation
Straight
Market
Commercial, Industrial
Temperature Rise
Max 30°C temperature rise at full rated current
Terminal Accom.
14-10 AWG
Flammability
Rated V-2 per UL 94
Clamp Nuts
Zinc-Plated Steel
ANSI
C-73
Screw Terminal Torque
14-18 in-lbs
Feature 4
Smooth Face
Current Limiting
Full Rated Current
Body Material
PBT Polyester Blend
CSA C22.2 No. 42
File LR-406
Device Type
Duplex Receptacle Outlet
Wire
3
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2 No.42
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Face Material
PBT Polyester Blend
UL498
File E13399
Pole
2
Dielectric Voltage
Withstands 3000V min
Ground Clips
Brass-Plated
Operating Temperature
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Certification/Listing
cULus, NON-ANCE
Terminal Screws
#8 Triple-Drive Brass
Line Contacts
0.030" Phosphor Bronze
Termination
Back and Side Wire
Strap Material
Steel (Galvanized G60)
At Rated Voltage
1/2 HP

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
