  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

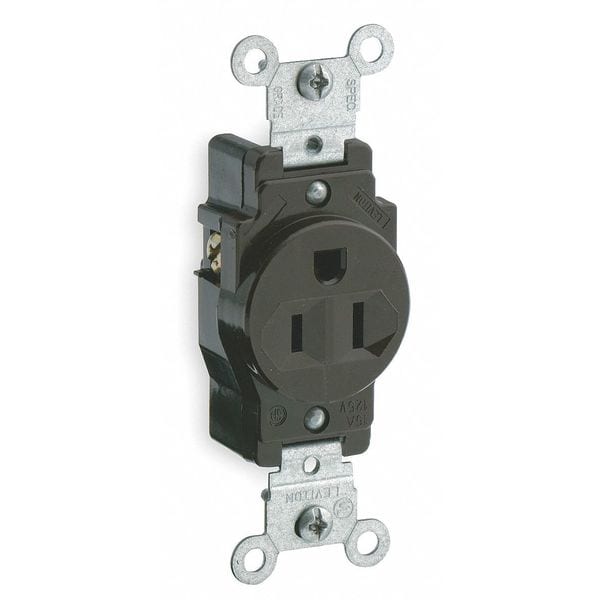

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 5015 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 5015

  • Zoro # G204836563

product price: $6.89
/ea
Sold in multiples of 10 for $68.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5015
Zoro #
G204836563
UPC #
07847720580
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Includes
Strap Material
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Single Receptacles
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Material
Nylon (Body and Face)
Number of Outlets
1
Polarized
Yes
Grade
Federal Specification
Contact Material
Brass
Housing Material
Nylon
Cover Type
No Cover
Includes Mounting Hardware
Yes
GFCI
No
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Connection Orientation
Straight
Device Type
Single Receptacle Outlet
Operating Temperature
-40°C to 60°C
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Termination
Side Wire
Grounding Screw
Brass 8-32
UL Fed Spec WC-596
File E13399
Screw Terminal Torque
14-18 in-lbs
UL498
File E13399
Pole
2
Face Material
Nylon
Feature 4
Smooth Face
CSA C22.2 No. 42
File 152105
Terminal Screws
Brass 8-32
Current Limiting
Full Rated Current
Line Contacts
Brass Double Wipe .031 Thick
Terminal Accom.
14-10 AWG
Body Material
Nylon
ANSI
C-73
Flammability
Rated V-2 per UL 94
Dielectric Voltage
Withstands 2000V per UL498
Wire
3
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1/2 HP
Strap Material
Zinc-Plated Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
