  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

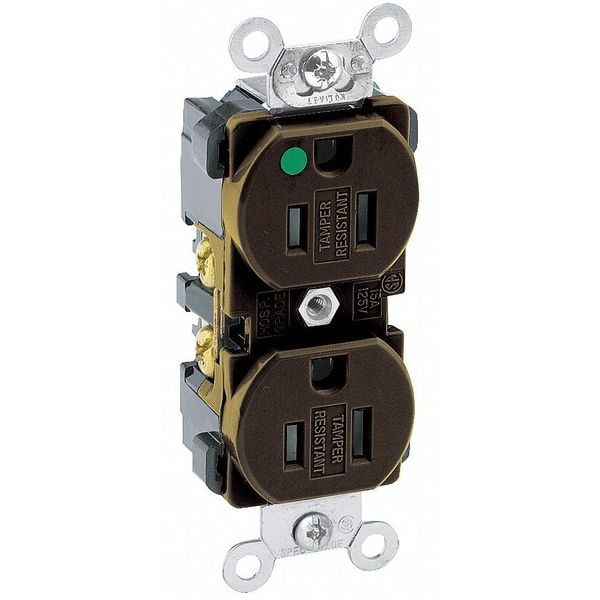

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 8200-SG - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 8200-SG

  • Zoro # G404393262

product price: $13.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-SG
Zoro #
G404393262
UPC #
07847705739
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.5 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Application Environment
Extra Heavy-Duty Hospital Grade
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Number of Outlets
2
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Polarized
Yes
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Contact Material
Nickel-Plated Phosphor Bronze
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
Strap Material
Nickel Plated Steel
Feature
Tamper-Resistant|Smooth Face
Torque Range
14-16 inch pounds
Termination
Back or Side Wire
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-10 AWG
Flammability
Rated V-2 per UL 94
Device Type
Duplex Receptacle Outlet
Face Material
Nylon
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Clamp Nuts
Zinc-Plated Steel
Line Contacts
Nickel Plated Phosphor Bronze
UL Fed Spec WC-596
File E13399
Terminal Screws
Plated Brass
Body Material
Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Ground Clips
Nickel-Plated Brass
Pole
2
ANSI
C-73
CSA C22.2 No. 42
File 152105
Shutter Mechanism
Delrin® Acetal
Grounding Screw
Plated Steel
UL498HG
File E13399
Current Limiting
Full Rated Current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
