  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

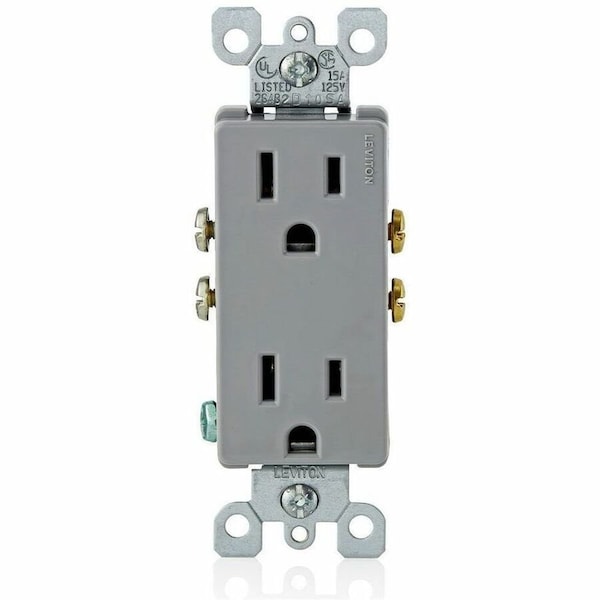

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 5325-GY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 5325-GY

  • Zoro # G304836524

product price: $6.47
/ea
Sold in multiples of 10 for $64.70

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5325-GY
Zoro #
G304836524
UPC #
07847723314
Country of Origin
United States

Dimensions

Face Plate Height
2.8 in
Overall Depth
1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA C22.2 No. 42, NOM 057, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Strap Material
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Push and Side
Application Environment
Residential Grade
Polarized
No
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Number of Outlets
2
Grade
Federal Specification
Housing Material
Thermoplastic
GFCI
No
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Includes Mounting Hardware
Yes
Market
Residential
Torque Range
14 - 18 in.-lbs
Body Material
Thermoplastic
Termination
Quickwire Push-In & Side
CSA C22.2 No. 42
File 152105; Class 6233-01
UL 498
File E13399
Pole
2
Face Material
Thermoplastic
Wire
3
Strap Material
Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant
