  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

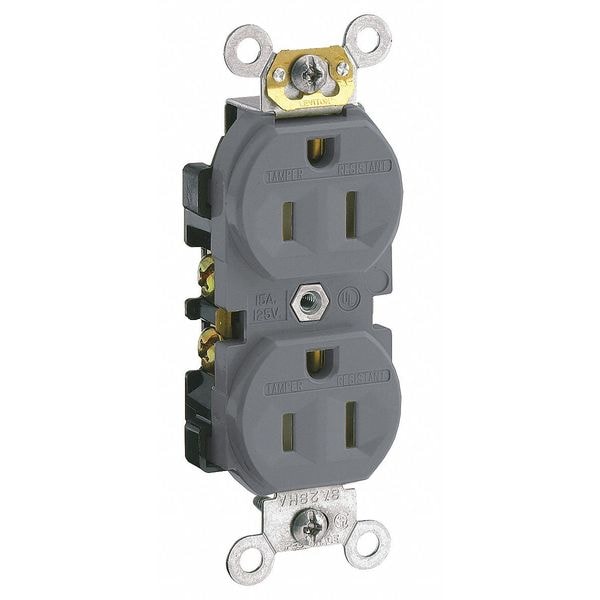

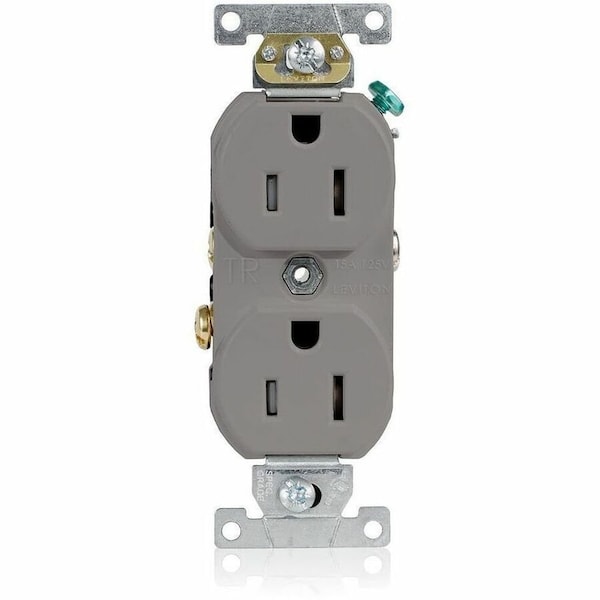

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray TCR15-GY - main
Shop LEVITON

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # TCR15-GY

  • Zoro # G104393241

product price:  $5.49
/ea
Sold in multiples of 10 for $54.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCR15-GY
Zoro #
G104393241
UPC #
07847765531
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Side
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Commercial
Material
Thermoplastic (Body and Face)
HP
1/2 hp
Sub-Category
Duplex Receptacles
Market
Commercial
Contact Material
Brass
GFCI
No
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
Cover Type
No Cover
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Polarized
Yes
Grade
Federal Specification
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Operating Temperature
-40°C to 60°C
Current Limiting
Full Rated Current
Terminal Accom.
10-14 AWG
Face Material
Thermoplastic
Strap Material
Zinc-Plated Steel
Feature 2
Tamper-Resistant
Terminal Screws
Plated Steel
ANSI
C-73
Wire Type
Solid or Stranded Building Wire
Pole
2
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque
14-18 in-lbs
Wire
3
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Grounding Screw
Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Termination
Side Wire
Feature 4
Smooth Face
cULus
File E13399
Ground Clips
Brass
Device Type
Duplex Receptacle Outlet
Body Material
Thermoplastic
Shutter Mechanism
Delrin® Acetal
Line Contacts
Brass .031 Thick
Flammability
Rated V-2 per UL94

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
