  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

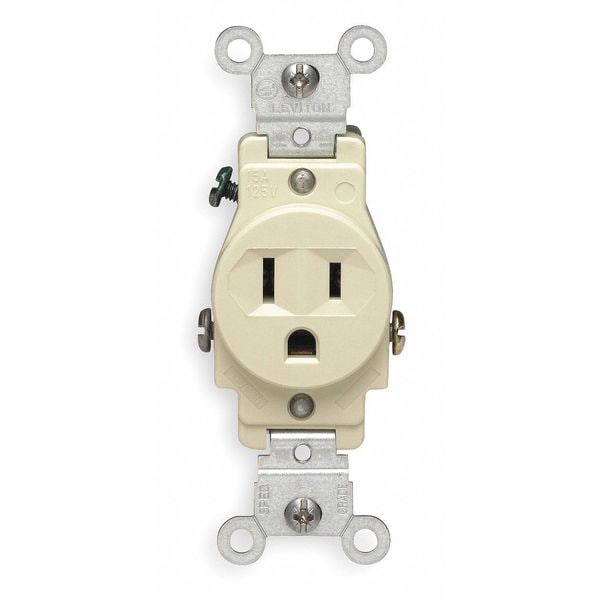

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 5015-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 5015-I

  • Zoro # G204836570

product price: $4.19
/ea
Sold in multiples of 10 for $41.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5015-I
Zoro #
G204836570
UPC #
07847720600
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
0.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, NOM 057, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Flange Type
Non-Flanged
Material
Nylon (Body and Face)
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Side
HP
1/2 hp
Includes
Strap Material
Number of Outlets
1
Horsepower Rating
1/2 hp
Grade
Federal Specification
Connection Orientation
Straight
GFCI
No
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Market
Commercial
Contact Material
Brass
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
UL498
File E13399
Device Type
Single Receptacle Outlet
At Rated Voltage
1/2 HP
Face Material
Nylon
Line Contacts
Brass Double Wipe .031 Thick
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
CSA C22.2 No. 42
File 152105
Termination
Side Wire
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C
Pole
2
Terminal Screws
Brass 8-32
Flammability
Rated V-2 per UL 94
Wire
3
Body Material
Nylon
Feature 4
Smooth Face
Screw Terminal Torque
14-18 in-lbs
Grounding Screw
Brass 8-32
Terminal Accom.
14-10 AWG
UL Fed Spec WC-596
File E13399
Dielectric Voltage
Withstands 2000V per UL498
Current Limiting
Full Rated Current
ANSI
C-73
Strap Material
Zinc-Plated Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
