  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

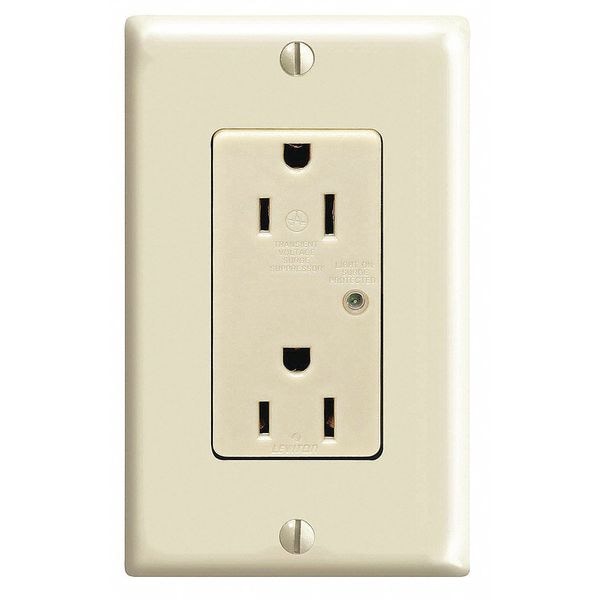

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory T5280-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # T5280-I

  • Zoro # G204393288

product price: $55.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5280-I
Zoro #
G204393288
UPC #
07847743429
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 1449, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon (Face), Polycarbonate (Body)
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
Application Environment
Commercial
Surge Suppression
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Maximum Operating Temperature
140 Degrees F
Surge Protection
Yes
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Cover Type
No Cover
Maximum Surge Current
27 kA
Grade
General Use
Number of Outlets
2
Market
Commercial, Industrial, Residential
Contact Material
Brass
GFCI
No
Connection Orientation
Straight
Housing Material
Polycarbonate
Current Limiting
Full Rated Current
Pole
2
Operating Temperature
-40°C to 60°C
Grounding Screw
Brass-Plated Steel
Line Contacts
Brass Triple-Wipe
Torque Range
14-16 inch pounds
Yoke
Zinc-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Shutter Mechanism
Delrin® Acetal
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Termination
Back or Side Wire
Terminal Accom.
14-10 AWG
ANSI
C-73
Function
Surge Protective
Joules Rating
720
Short Circuit Current Rating
5kA
Feature
Tamper-Resistant
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Zinc-Plated Steel
Body Material
Polycarbonate
Wire
3
Noise Rejection
-30dB at 500kHz-30MHz
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Nominal Discharge Current Rating
3kA
Ground Clips
Brass-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Diagnostics
Indicator Light
MCOV
150V rms
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Brass-Plated Steel
Face Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
